Double Column Machining Center
DB 1600, 2, 3, 4, 5, 6M

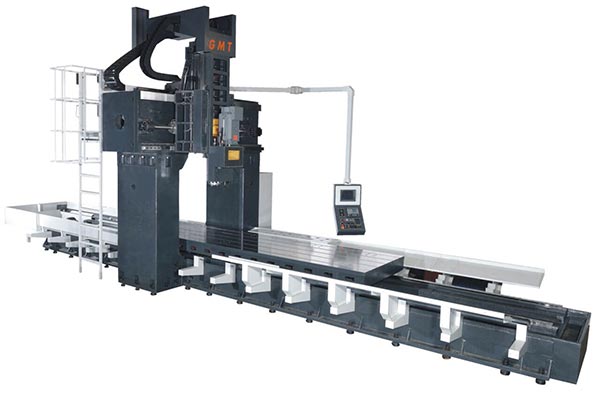

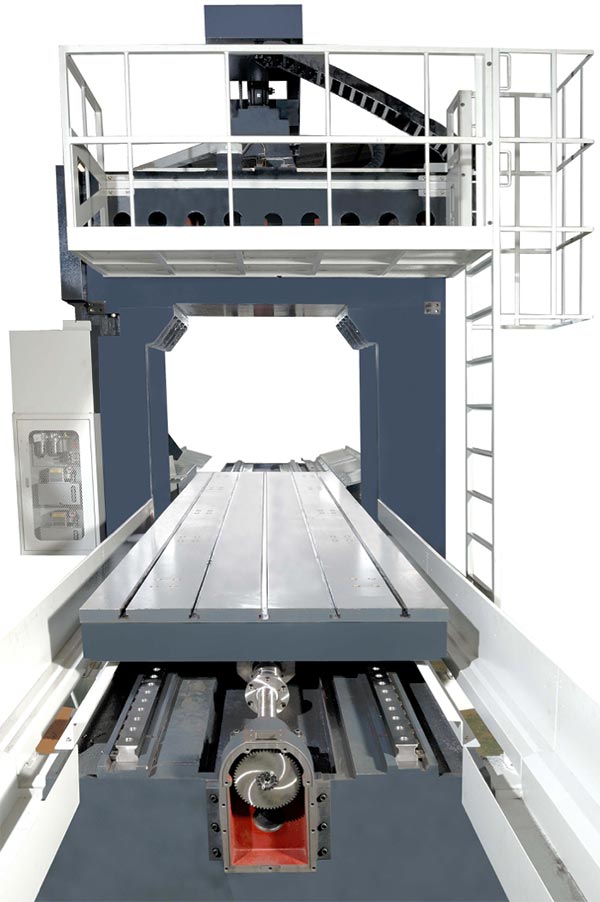

DB 1600

All structural parts are made of high strength cast iron and phenolic send molding with the good shock absorption and thermal stability. The structure of the whole machine is characterized by the high rigidity and high reliability. It is suitable for processing of heavy and extra heavy parts in the industries of metallurgy, railway, automotive and heavy machine shipbuilding.

Specification

  DB 16200 DB 16300 DB 16400 DB 16500 DB 16600
Table Size 1300 x 2000 mm 1300 x 3000 mm 1300 x 4000 mm 1300 x 5000 mm 1300 x 6000 mm
X-Axis Travel 2200 mm 3200 mm 4200 mm 5200 mm 6200 mm
Y-Axis Travel 1600 mm 1600 mm 1600 mm 1600 mm 1600 mm
Z-Axis Travel 800 (1000) mm 800 (1000) mm 800 (1000) mm 800 (1000) mm 800 (1000) mm

Features

  • Full Meehanite cast iron structure, columns, bridge and bed.
  • Wide column (400mm*700mm).
  • Directly connected X, Y, X ball screw and AC servo motors.
  • Twin hydraulic cylinders balance system.
  • Stepped design Y- axis.
  • Mitsubishi M 70A series Controller. 10.4“ LCD screen.
  • 45mm*2 linear guide ways on X-axis.
  • 45mm*2 linear guide ways on Y-axis.
  • Box way column on Z-axis.
  • BT-40 Precision spindle taper.
  • 10.000rpm direct drive rigid spindle.
  • 15/18.5KW Spindle Motor
  • Up to 3.5, 3.5, 4.5 KW X, Y, Z Axis Servo Motors
  • 20,20,15M/min rapid travers on X, Y, Z axis.
  • 50, 50, 50 X, Y, Z Axis Ball Screw Diameter
  • P4 Class bearings.
  • 24 tools Arm type ATC.
  • Two Screw Type, One Link Type Chip Conveyor.

 1600db-1200-1600



table

  • Mitsubishi M 70A series Controller. 10.4“ LCD screen
  • BT 50, 6.000rpm, 15/18.5 KW Gear Box Spindle
  • Twin hydraulic cylinders balancing system
  • 24 Tools Arm Type ATC
  • Automatic Lubricating Device
  • Cutting Coolant
  • Working Lamp
  • Working Table Splashier
  • Three Step Warning Lamps
  • Rigid Tapping
  • Horizontal Adjusting Bolt and Pad
  • Tool for Adjustment
  • Air Blow/ Cutting Fluid
  • Electric Machine Operation Manual
  • Spindle Cooling System
  • Air Gun/ Water Gun
  • Full- enclosed Splash Guard (Without roof)
  • Swiveling arm type operation panel
  • CE Requirements
  • Transformer
  • External Hand Wheel
  • Electric Cabin with Head Exchanger
  • Footswitch for tool clamping
  • Oil Skimmer
  • Two Screw Type, One Link Type Chip Conveyor
Controller;
-Mitsubishi M720-Mitsubishi M730
-Fanuc OIMD
-Fanuc 31B
-Heidenhain ITNC 530

Spindle;
-BT 40 10.000rpm Direct Drive
-BT 40 12.000rpm Direct Drive
-BT 40 15.000rpm Direct Drive
-BT 50 10.000rpm Direct Drive

Coolant Through Spindle 20 Bar (CTS)
-Paper Filter and Water Tank

Air Through Spindle (ATS)Spindle Jet Coolant Around Spindle

Z axis travel up grade to 1000mm

32 Tools Arm Type ATC

Enclosed splash guard with roof

AC for electrical cabinet

X,Y,Z Linear Scale

Touch Probe Measurement System

Tool Probe Measurement System

Interface preparation for fourth axis

Rotary Table



Mold
Machine
Vehicle
