Universal Materials Cutting

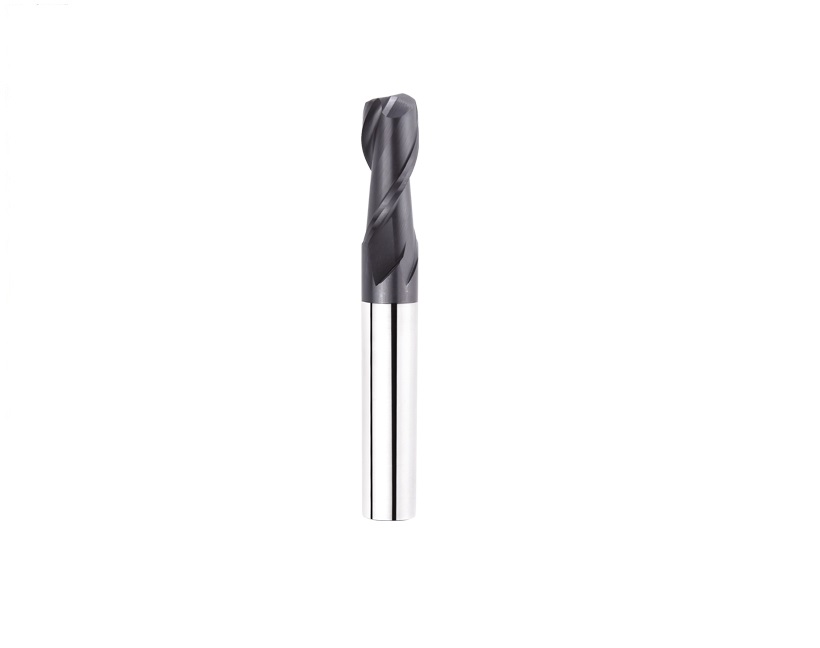

Corner Radius End Mills
RB2
Specification
| Model No. |
Diameter |
Flute Length |
Corner R |
O.A.L |
Shank Dia |
| RB2-00501 |
0.5 |
1.5 |
0.1 |
50 |
4 |
| RB2-01001 |
1.0 |
3 |
0.1 |
50 |
4 |
| RB2-01002 |
1.0 |
3 |
0.2 |
50 |
4 |
| RB2-01501 |
1.5 |
4 |
0.1 |
50 |
4 |
| RB2-01502 |
1.5 |
4 |
0.2 |
50 |
4 |
| RB2-01503 |
1.5 |
4 |
0.3 |
50 |
4 |
| RB2-01505 |
1.5 |
4 |
0.5 |
50 |
4 |
| RB2-02002 |
2.0 |
6 |
0.2 |
50 |
4 |
| RB2-02003 |
2.0 |
6 |
0.3 |
50 |
4 |
| RB2-02005 |
2.0 |
6 |
0.5 |
50 |
4 |
| RB2-02502 |
2.5 |
7.5 |
0.2 |
50 |
4 |
| RB2-02505 |
2.5 |
7.5 |
0.5 |
50 |
4 |
| RB2-03002 |
3.0 |
8 |
0.2 |
50 |
4 |
| RB2-030023 |
3.0 |
8 |
0.2 |
50 |
3 |
| RB2-03003 |
3.0 |
8 |
0.3 |
50 |
4 |
| RB2-030033 |
3.0 |
8 |
0.3 |
50 |
3 |
| RB2-03005 |
3.0 |
8 |
0.5 |
50 |
4 |
| RB2-030053 |
3.0 |
8 |
0.5 |
50 |
3 |
| RB2-03010 |
3.0 |
8 |
1.0 |
50 |
4 |
| RB2-030103 |
3.0 |
8 |
1.0 |
50 |
3 |
| RB2-04002 |
4.0 |
10.5 |
0.2 |
50 |
4 |
| RB2-04003 |
4.0 |
10.5 |
0.3 |
50 |
4 |
| RB2-04005 |
4.0 |
10.5 |
0.5 |
50 |
4 |
| RB2-04010 |
4.0 |
10.5 |
1.0 |
50 |
4 |
| RB2-05002 |
5.0 |
13 |
0.2 |
50 |
6 |
| RB2-05003 |
5.0 |
13 |
0.3 |
50 |
6 |
| RB2-05005 |
5.0 |
13 |
0.5 |
50 |
6 |
| RB2-05010 |
5.0 |
13 |
1.0 |
50 |
6 |
| RB2-06002 |
6.0 |
15.5 |
0.2 |
50 |
6 |
| RB2-06003 |
6.0 |
15.5 |
0.3 |
50 |
6 |
| RB2-06005 |
6.0 |
15.5 |
0.5 |
50 |
6 |
| RB2-06010 |
6.0 |
15.5 |
1.0 |
50 |
6 |
| RB2-08003 |
8.0 |
20 |
0.3 |
60 |
8 |
| RB2-08005 |
8.0 |
20 |
0.5 |
60 |
8 |
| RB2-08010 |
8.0 |
20 |
1.0 |
60 |
8 |
| RB2-10005 |
10.0 |
25 |
0.5 |
75 |
10 |
| RB2-10010 |
10.0 |
25 |
1.0 |
75 |
10 |
| RB2-10020 |
10.0 |
25 |
2.0 |
75 |
10 |
|
|
|
|
|
| Shank(h6) |
Shank Tolerance |
Diameter |
Diamerter Tolerance |
Radius Tolerance |
| 3.0 |
0~-0.008 |
3.0 |
0~-0.02 |
+0.01~-0.01 |
| 4.0 |
0~-0.008 |
0.5~4.0 |
0~-0.02 |
+0.01~-0.01 |
| 6.0 |
0~-0.008 |
5.0~6.0 |
0~-0.02 |
+0.01~-0.01 |
| 8.0 |
0~-0.008 |
8.0 |
0~-0.02 |
+0.01~-0.01 |
| 10.0 |
0~-0.009 |
10.0 |
0~-0.025 |
+0.01~-0.01 |
|
|
