Universal Materials Cutting

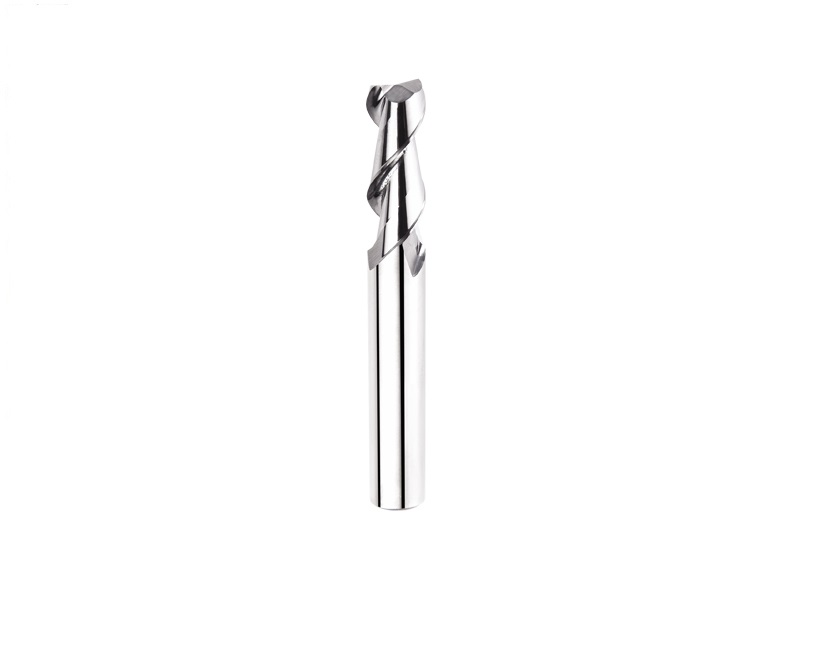

Square End Mills
AEM2

Specification



Model No. Diameter Flute Length O.A.L Shank Dia
AEM2-010 1.0  3  50  4
AEM2-015 1.5  4  50  4
AEM2-020 2.0  6  50  6
AEM2-030 3.0  8  50  6
AEM2-040 4.0  11  50  6
AEM2-050 5.0  13  50  6
AEM2-060 6.0  16  50  6
AEM2-080 8.0  20  60  8
AEM2-100 10.0  25  75  10
AEM2-120 12.0  26  75  12
Tolerance unit : mm



Shank(h6) Shank Tolerance Diameter Diamerter Tolerance Radius Tolerance
4.0  0~-0.008  1.0~1.5  0~-0.02
6.0  0~-0.008  2.0~6.0  0~-0.02
8.0  0~-0.008  8.0  0~-0.025
10.0  0~-0.009  10.0  0~-0.03
12.0  0~-0.011  12.0  0~-0.035

Mold
Machine
Vehicle
