Universal Materials Cutting

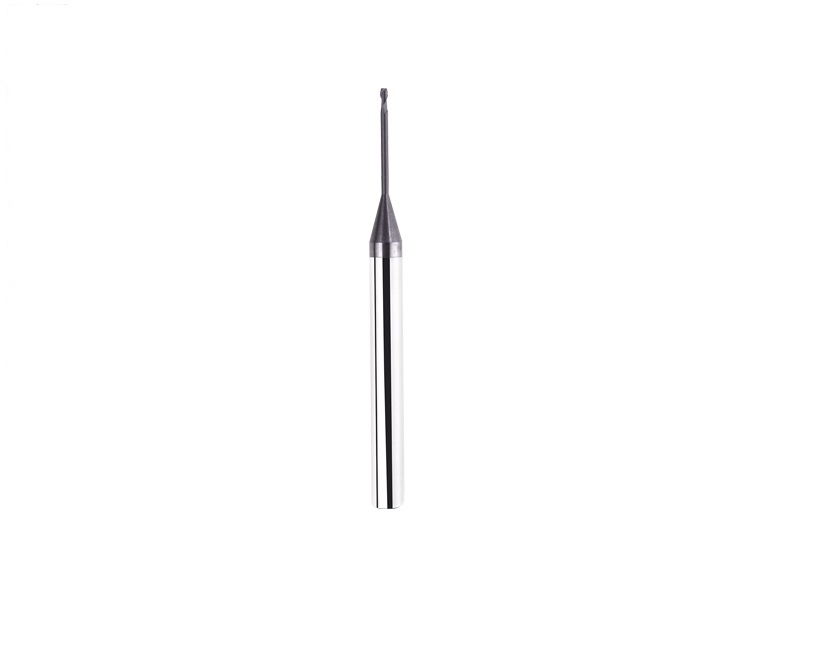

Long Neck Square End Mills
NE2
Specification
| Model No. |
Diameter |
Flute Length |
Neck Dia |
Effective Length |
O.A.L |
Shank Dia |
| NE2-0402 |
0.4 |
0.7 |
0.36 |
2 |
50 |
4 |
| NE2-0404 |
0.4 |
0.7 |
0.36 |
4 |
50 |
4 |
| NE2-0502 |
0.5 |
0.8 |
0.46 |
2 |
50 |
4 |
| NE2-0504 |
0.5 |
0.8 |
0.46 |
4 |
50 |
4 |
| NE2-0506 |
0.5 |
0.8 |
0.46 |
6 |
50 |
4 |
| NE2-0804 |
0.8 |
1.2 |
0.75 |
4 |
50 |
4 |
| NE2-0806 |
0.8 |
1.2 |
0.75 |
6 |
50 |
4 |
| NE2-0808 |
0.8 |
1.2 |
0.75 |
8 |
50 |
4 |
| NE2-1004 |
1.0 |
1.5 |
0.95 |
4 |
50 |
4 |
| NE2-1006 |
1.0 |
1.5 |
0.95 |
6 |
50 |
4 |
| NE2-1008 |
1.0 |
1.5 |
0.95 |
8 |
50 |
4 |
| NE2-1010 |
1.0 |
1.5 |
0.95 |
10 |
50 |
4 |
| NE2-1012 |
1.0 |
1.5 |
0.95 |
12 |
50 |
4 |
| NE2-1506 |
1.5 |
2.3 |
1.45 |
6 |
50 |
4 |
| NE2-1508 |
1.5 |
2.3 |
1.45 |
8 |
50 |
4 |
| NE2-1510 |
1.5 |
2.3 |
1.45 |
10 |
50 |
4 |
| NE2-1512 |
1.5 |
2.3 |
1.45 |
12 |
50 |
4 |
| NE2-1516 |
1.5 |
2.3 |
1.45 |
16 |
50 |
4 |
| NE2-2008 |
2.0 |
3 |
1.92 |
8 |
50 |
4 |
| NE2-2010 |
2.0 |
3 |
1.92 |
10 |
50 |
4 |
| NE2-2012 |
2.0 |
3 |
1.92 |
12 |
50 |
4 |
| NE2-2016 |
2.0 |
3 |
1.92 |
16 |
50 |
4 |
| NE2-2020 |
2.0 |
3 |
1.92 |
20 |
50 |
4 |
| NE2-2510 |
2.5 |
3.5 |
2.42 |
10 |
50 |
4 |
| NE2-2512 |
2.5 |
3.5 |
2.42 |
12 |
50 |
4 |
| NE2-2516 |
2.5 |
3.5 |
2.42 |
16 |
50 |
4 |
| NE2-2520 |
2.5 |
3.5 |
2.42 |
20 |
50 |
4 |
| NE2-3010 |
3.0 |
4 |
2.90 |
10 |
50 |
6 |
| NE2-3012 |
3.0 |
4 |
2.90 |
12 |
50 |
6 |
| NE2-3016 |
3.0 |
4 |
2.90 |
16 |
50 |
6 |
| NE2-3020 |
3.0 |
4 |
2.90 |
20 |
60 |
6 |
| NE2-3025 |
3.0 |
4 |
2.90 |
25 |
60 |
6 |
|
|
|
|
|
| Shank(h6) |
Shank Tolerance |
Diameter |
Diamerter Tolerance |
Radius Tolerance |
| 4.0 |
0~-0.008 |
0.4~2.5 |
0~-0.015 |
|
| 6.0 |
0~-0.008 |
3.0 |
0~-0.015 |
|
|
|
