Angle Head
AHD-BT40-A1 90 degree Angle Head
AHD-BT40-A1

BT40-ER20 90° Angle Head (AHD Type_Longer)
Run-out : 0.002 mm
Material : Ductile Cast Iron
R.P.M. : Max. 4000 RPM
Torque : Max. 15 Nm
Gear Ratio : 1:1
Spindle Type : BT, SK(ISO), CAT
Standard Accessory: Hook Spanner ER Wrench, ER Nut
Output Rotation : Reverse to Input Rotation

◎ 6000 rpm high speed processing. Increases machining efficiency.
◎ Compact and longer body design is suitable for the deep-hole and deep-slot machining application.
◎ Can be automatic tool changed. Increases productivity.
◎ Cutting direction can be adjusted from 0 ~ 360 degree.

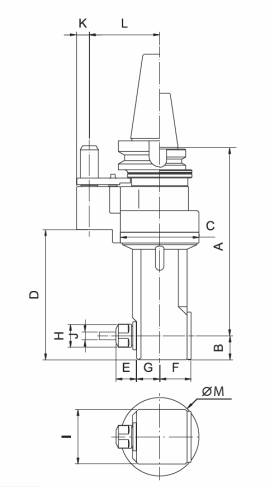

Specification

Model No. A B C D E max F G H I J K L M N.W. (KG)
AHD-BT40-A1 227 29 95 156 38 38 28 34 66 1-13(ER20) 15.5 65/80/85 116 8.4

Unit:mm
