Vise

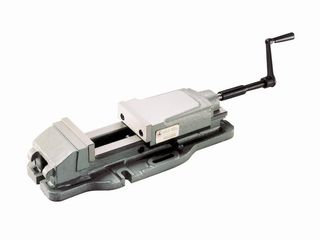

HWA - Hydraulic Machine Vise
HWA-100
Standard Accessories : Screw / Handle
◎Both Slideways flame hardened to HRc56-60 can resist wear and maintain accuracy for long.
◎Quick 3-step clamping position design can improve working efficiency.
◎Clamping force can be easily adjusted with the base line design as a guide.
◎Auto-Positioning design.
◎Alloy Steel Jaw which is flame hardened and precision ground ensures the accuracy.
◎Hydra. Booster system can provide a steady clamping force against shocks and vibration during various operations since it fastens the workpiece resiliently with the aid of dish springs mounted inside.
Specification

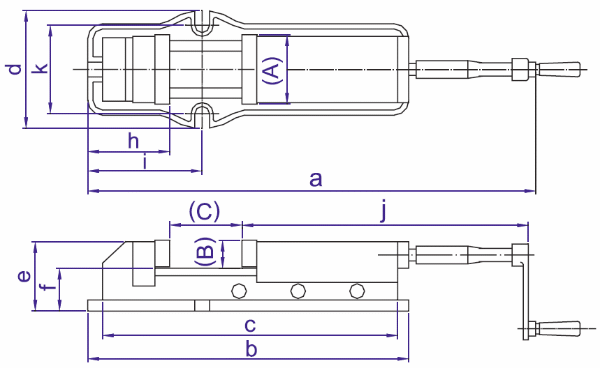

| Model No. | (A) | (B) | (C) | a | b | c | d | e | f | g | h | i | j | k | Max. Clamp. Force (kfg) |
N.W. (KG) |
| HWA-100 HWA-125 HWA-150 HWA-200 |
100 125 150 200 |
36 45 51 62 |
0-170 0-220 0-300 0-300 |
525 670 800 900 |
435 540 610 700 |
395 490 570 650 |
160 185 240 280 |
94 447 133 162 |
58 72 82 100 |
78 98 116 160 |
101 112 127 165 |
155 184 205 265 |
263 641 380 435 |
120 145 200 24 |
2500 4000 5000 7000 |
18 32 60 90 |
Unit：mm
