VDI Static Tooling

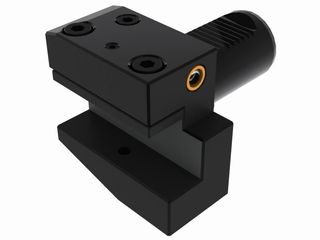

THA-B1-3020 VDI30-W20 Radial Tool Form B1
VDI30
◎ ● Radial Tool Holder form B1 right hand, short
◎ ● B1-30x20x40
Contact Supplier
Add to Favorites

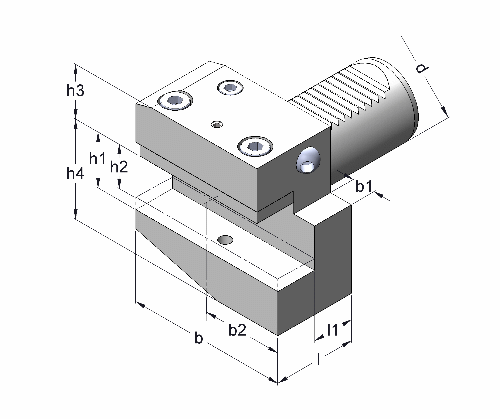

Specification
Model No.
d
b
b1
b2
h1
h2
h3
h4
l
l1
Ref. No.
THA-B1-3020
30
70
10
35
20
16
28
38
40
22
B1-30x20x40
Unit：mm
