ZNC-EB EDM

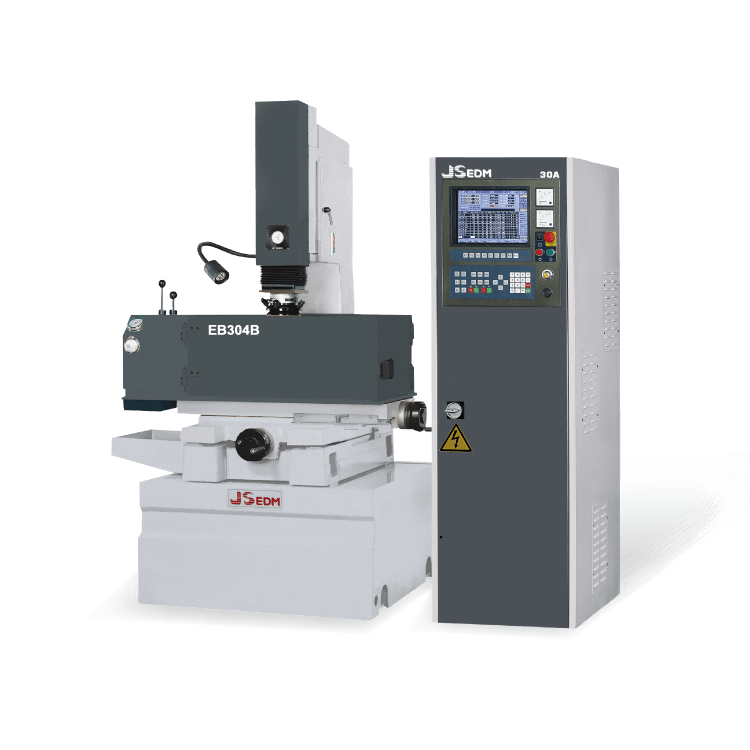

EB304N
EB304N

EBN (ZNC) Machine Structure
The machine frame adopts FC30, and has gone through heat treatment and an annealing process to ensure the metal is highly rigid, preventing deformation.
The working table has gone through high frequency induction hardening and surface polishing to increase machining accuracy and lifespan.
Ball screws are utilized in X, Y Axis. (EB304B, EB606N, EB707B, EB808B)
One V and one flat design for maximum accuracy. (EB304B, EB606N, EB707B, EB808B)
The contacting faces of X, Y Axis are TURICE-B for smoother movement. (EB304B, EB606N, EB707B, EB808B)
Linear Guide Way and High Accuracy screw are used on Z axis, with PWM servo system (Same class as CNC model) can perform maximum working efficiency. (EB304B, EB606N, EB707B, EB808B)
Back slide is provided for Z axis. (EB304B, EB606N, EB707B, EB808B)
Remote Controller is provided to the user.
Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision ball screws on X, Y, Z axis.
Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision Linear Guide Way on X, Y, Z axis.
A standard Up/Down door is installed in model that travels more than 800mm on both X, Y axis (EB860N).
Model that travels more than 800mm on both X, Y axis (EB860N), the movement of X, Y axis are controlled by servo motor.
Model that travels more than 800mm on both X, Y axis (EB860N), the movement of the X, Y axis are relied on a movable column.

Specification

  • Capacity of Work Tank

    850x530x340 mm

  • Work Table Size

    600x300 mm

  • Longitudinal Travel (X-Axis)

    300 mm

  • Cross Travel (Y-Axis)

    250 mm

  • Z Axis Travel (Z-Axis + W-Axis)

    150 + 200 mm

  • Distance Between Platen to Table

    160~510 mm

  • Max. Electrode Weight

    60 kgs

  • Max. Work Piece Weight

    500 kgs

  • Fluid Tank Capacity

    330 L

  • Machine Outside Dimensions (WxDxH)

    2100x1300x2000 mm

  • Machine Weight

    1000 kgs

  • Max. Machining Current

    30 / 60 A (Optional)

  • Max. Power Input

    4 / 7 KVA

  • Max. Machining Rate

    200 / 400 mm3/min

  • Min. Electrode Wear Ratio

    0.15 %

  • Best surface / Ra

    Ra 0.2 μm

  • Min. D. R. O. Resolution

    0.005 mm
