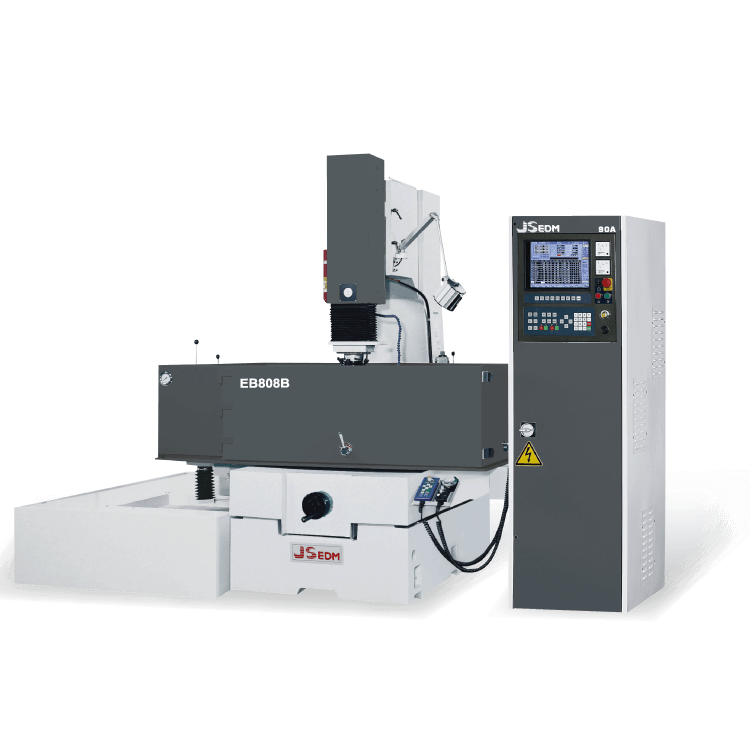

EBN (ZNC) Machine Structure
The machine frame adopts FC30, and has gone through heat treatment and an annealing process to ensure the metal is highly rigid, preventing deformation.
The working table has gone through high frequency induction hardening and surface polishing to increase machining accuracy and lifespan.
Ball screws are utilized in X, Y Axis. (EB304B, EB606N, EB707B, EB808B)
One V and one flat design for maximum accuracy. (EB304B, EB606N, EB707B, EB808B)
The contacting faces of X, Y Axis are TURICE-B for smoother movement. (EB304B, EB606N, EB707B, EB808B)
Linear Guide Way and High Accuracy screw are used on Z axis, with PWM servo system (Same class as CNC model) can perform maximum working efficiency. (EB304B, EB606N, EB707B, EB808B)
Back slide is provided for Z axis. (EB304B, EB606N, EB707B, EB808B)
Remote Controller is provided to the user.
Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision ball screws on X, Y, Z axis.
Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision Linear Guide Way on X, Y, Z axis.
A standard Up/Down door is installed in model that travels more than 800mm on both X, Y axis (EB860N).
Model that travels more than 800mm on both X, Y axis (EB860N), the movement of X, Y axis are controlled by servo motor.
Model that travels more than 800mm on both X, Y axis (EB860N), the movement of the X, Y axis are relied on a movable column.
-
Capacity of Work Tank
1700x1000x550 mm
-
Work Table Size
1100x600 mm
-
Longitudinal Travel (X-Axis)
700 mm
-
Cross Travel (Y-Axis)
550 mm
-
Z Axis Travel (Z-Axis + W-Axis)
250 + 300 mm
-
Distance Between Platen to Table
250~830 mm
-
Max. Electrode Weight
250 kgs
-
Max. Work Piece Weight
2000 kgs
-
Fluid Tank Capacity
1250 L
-
Machine Outside Dimensions (WxDxH)
3300x2000x2300 mm
-
Machine Weight
3100 kgs
-
Max. Machining Current
60 / 90 A (Optional)
-
Max. Power Input
7 / 10 KVA
-
Max. Machining Rate
400 / 600 mm3/min
-
Min. Electrode Wear Ratio
0.15 %
-
Best surface / Ra
Ra 0.2 μm
-
Min. D. R. O. Resolution
0.005 mm
