Products

Vertical Machining Center
HEAVY DUTY

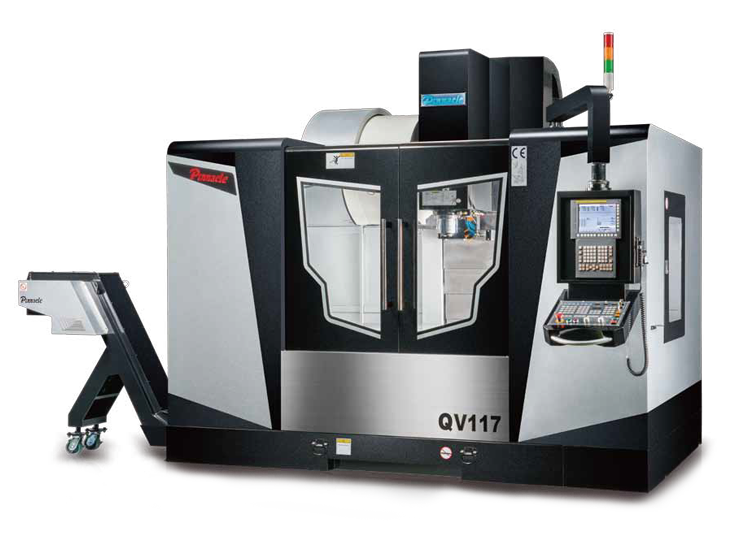

QV117/QV137/QV147

Now you can get the right VMC's with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way series VMC's are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle VMC in your production line.

Features

  • 1140 (1300 / 1400) X 710 x 610 mm Travel

  • Rapid Feedrate 20/20/16 m/min

  • 15HP / 20HP Spindle Motor

  • ISO40 Spindle Taper / ISO50 Spindle Taper

  • X, Y & Z Axis Square Way

  • 4 Slideway on Base

  • Features

  • Specifications

  • Accessories

  • Quality Inspections

  • Options

RUGGED CONSTRUCTION ASSURES OPTIMUM RIGIDITY AND STABILITY.

The major structural parts are manufactured from high quality Meehanite cast iron (FC-30), hardened to over HB190 and tempered to relieve stress.

Box ways on the three axes. Way surfaces are hardened to over HRC55 with over 2 mm depth.

Three axes are equipped with class C3 and 40mm (QV117 / QV127 / QV147) and 50mm (QV159 / QV179 / QV209) diameter precision ball screws.

Counter-balance weight moves on a guide shaft for added stability and straightness accuracy.

Taiwan Patent No.: 177230, China Patent No.: 416211

COUNTER WEIGHT BALANCE SYSTEM

Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China.

RIGID, PRECISION SPINDLE

ASSURES HIGH QUALITY MACHINING
  • Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.

  • Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life.

  • The spindle is a cartridge-type.

  • Choice of various spindle speeds - 6,000 rpm (ISO50, Belt Type/Gear Type), 8,000 rpm (ISO40/ISO50, Belt Type) 10,000 rpm (ISO40, Belt Type), 12,000 rpm (ISO40, Belt Type).

  • The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.

CHIPS FLUSHING NOZZLES

Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.

COUPLINGS

Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity and keeps the accuracy of axial linear assembly under high speed movement.

AUTOMATIC LUBRICATION SYSTEM

The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.

CONTROL SYSTEM

The centralized control panel employs a touch sensing screen for user-friendly operation. The humanized designed control panel has an elegant appearance. Various controllers can be chose - Mitsubishi, Heidenhain, Fanuc and Siemens.

SPLASH GUARD

The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.


Specification

MODELQV117QV137QV147
TABLE
Table Size (mm)1300 x 7001500 x 7001600 x 700
Travel Ranges (X x Y x Z mm)1140 / 710 / 6101300 / 710 / 6101400 / 710 / 610
Max. Table Load (kgs)100012001500
SPINDLE NOSE TO TABLE SURFACE (mm)110 ~ 720110 ~ 720110 ~ 720
T-slot (Width x Distance x Number mm)18 x 125 x 518 x 125 x 518 x 125 x 5
SPINDLE
Tool Shank & Pull StudISO40ISO50
Spindle Inner Diameter (mm)Ø70Ø100
Spindle Center to Column (mm)760760
Spindle Speed (rpm) Belt40 - 800040 - 6000 (8000)
Spindle Speed (rpm) GearL40 ~ 1750, H1751 ~ 8000L40 ~ 1500, H1501 ~ 6000
Draw Bar Force (kgf)9502000
Main Motor (con/30 min Kw)7.5 / 1111 / 15
FEED RATE
Rapid Feed Rate (X/Y/Z m/min)20 / 20 / 1620 / 20 / 1620 / 20 / 16
Feed Rate (X/Y/Z/ mm/min)100001000010000
AXIS SERVO MOTOR
Mitsubishi  (Kw)HF354 (3.5)HF354 (3.5)HF354 (3.5)
Fanuc (Kw)β22/2000is 2.5 (α12i/3000i 3.0)
Siemens (Kw)1FK7083 (4.17)1FK7083 (4.17)1FK7083 (4.17)
Fagor (Kw)FKM64.30AFKM64.30AFKM64.30A
Heidenhain (Kw)QSY155D (5.68)QSY155D (5.68)QSY155D (5.68)
AUTO TOOL CHANGERISO40ISO50
Mag TypePLATE / DISKDISK / CHAIN
Cam TypeGENOVA / DAUL ARMDAUL ARM
Tool Selection (Bi-direction)ABSOLUTE / RANDOMRANDOM
Tool Storage Capacity (PCs)20 / 2424 / 32
Max. Tool Diameter (mm)Ø100 / Ø90Ø105 / Ø127
Max. Tool Length (mm), Weight (kgs)250, 8350, 15
MISCELLANEOUS
Air Requirement (Kg/cm²)666
Voltage220V, 3Ph, 50 / 60Hz220V, 3Ph, 50 / 60Hz220V, 3Ph, 50 / 60Hz
Power Requirement (KVA)303030
Coolant Tank Capacity (L)200200200
Machine Weight (Kgs)90001000011000
Machine Height (mm)300030003000
Floor Space (L x W mm)3250 x 30803490 x 30803890 x 3080

 All Specifications And Designs Are Subject To Change Without Notice.
