a. Water-Repellant Ring (Patented)

For this spindle type, every spindle has a water repellant ring to effectively repel any cutting fluids away from the spindle to prevent anything from splashing into the labyrinth area during high speed cutting.

b. Labyrinth Design with Air Seal

During high speed operation, positive air pressure coming out from the labyrinth prevents any contamination from entering into the spindle.

c. Highly Efficient Helical Cooling Channel

The compactly designed helical cooling channels effectively dissipate heat from the stator coil and bearings to reduce the effects of thermal deformation on precision.

d. Anti-Rotating Gripper Guide Ring (Patented)

During acceleration and deceleration of the spindle, the patented gripper guide ring design eliminates any unusual noises and vibration of dynamic balance.

e. Inspection of Precision of Every Spacer

Every spacer is inspected for precision to assure unanimous quality of every spindle.

f. PCB Model Type Made With Stainless Steel

Suitable for clean room operation, the PCB model type is made with stainless steel to allow the use of a water cooling system.

g. Hardness Test of Critical Parts

After heat treatment, the critical parts undergo a hardness test to ensure they have the correct hardness in order to reduce their risk of damage during operation.

h. 3-Plane Dynamic Balancing

To effectively decrease vibration, we conduct dynamic balancing calibration at 3 different planes.

i. Test of Isolation Grade of Stator Coil

Testing the isolation grade of the stator coil ensures stable electronic drive control and long operational life.

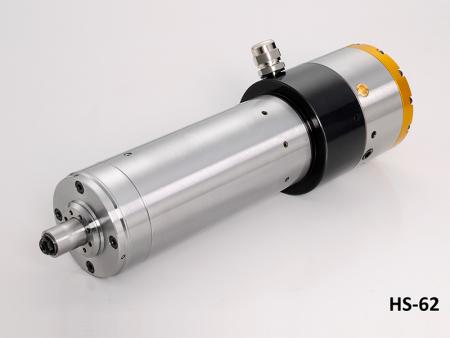

Specififcation Of Build-In Motor Spindle

Table Of Outer Dimensions Of Built-In Spindle
