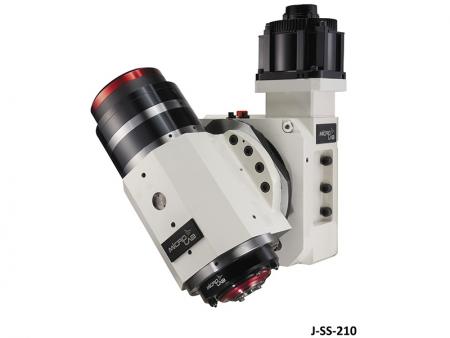

#40 Rotary Spindle Head, RM4-HMSC-T+JEA.
#40 Rotary Spindle Head, RM4-HMSC-T+JEA, tool holder can be optional for BT40, DIN40, and CAT40 with rotary table JEA which Max speed is 30 rpm.
#40 Rotary Spindle Head, RH6-HMSC-T+JEA, tool holder can be optional for HSK63A, HSK63T and CAPTO63 with rotary table JEA which Max speed is 30 rpm.
#40 Rotary Spindle Head, RM4-HMSC-T+JEA and RH3-GMS-T+JAA are suitable for complex parts machining, such as 5-axis machining centers and milling & turning integrated CNC Lathe, aerospace industry and automobile engine and so on.
Equipped with high resolution encoder, achieve high position and repeatable accuracy.
Compatible to many kinds major controllers as customers demand.
Outlet of lines at the axis of rotation with simple and pleasing body.
#40 Rotary Spindle Head, RM4-HMSC-T+JEA, tool holder could be with BT40, DIN40 and CAT40, Max. speed is 15000 rpm, and rotary table JEA is 30 rpm.
#40 Rotary Spindle Head, RH6-HMSC-T+JEA, tool holder could be with HSK63A, HSK63T and CAPTO63, Max. speed is 15000 rpm, and rotary table JEA is 30 rpm.
Rotary Table Specifiction
| ROTARY TABLE NO. | ROTARY TABLE MAX. SPEED | SWING ANGLE | POSITION ACCURACY | REPEATABLE ACCURACY | WORKING TORQUE | BRAKING TORQUE |
|---|---|---|---|---|---|---|
| JEA | 30rpm | ± 100° | ± 8 arc-sec | ± 3 arc-sec | 500 N-m | 1500 N-m (OP) |
Rotary Spindle Specifiction
| MODEL NO. | TOOL HOLDER | MAX. SPEED (RPM) |
NO. OF BEARINGS | SC | CTS | BRAKING | ENCODER (PULSE/REV) |
POWER (KW) |
DIAMETER OF FRONT BEARING (MM) |
|---|---|---|---|---|---|---|---|---|---|
| RM4-HMSC-T | BT40 DIN40 CAT40 |
10000 12000 15000 |
4 | Option | Option | Option | 1024 | 18KW (25KW) |
Ø 65 |
| RH6-HMSC-T | HSK63A HSK63T CAPTO63 |
10000 12000 15000 |
4 | Option | Option | Option | 1024 | 18KW (25KW) |
Ø 65 |
Table Of Outer Dimensions Of Rotary Spindle Head
| ROTARY SPINDLE HEAD NO. | L1 | L2 | L3 | L4 | L5 | L6 (MIN.) |
L7 | L8 | D1 (H7) |
REFERENCE |
|---|---|---|---|---|---|---|---|---|---|---|
| RM4-HMSC-T+JEA RH6-HMSC-T+JEA |
265 | 260 | 340 | 147.5 | 226 | 360 | 400 | 360 | 300 | Diagram 5 |
