Rotary Spindle Head
#25 Rotary Spindle Head

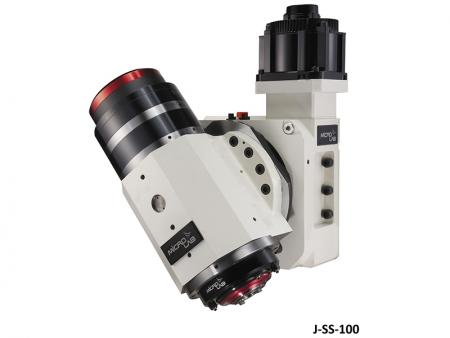

J-SS-100

#25 Rotary Spindle Head, RM25-GMS-T+JAA and RH3-GMS-T+JAA.
#25 Rotary Spindle Head, RM25-GMS-T+JAA, tool holder is ISO25 with rotary table JAA which Max speed is 40 rpm.
#25 Rotary Spindle Head, RH3-GMS-T+JAA, tool holder is HSK32E with rotary table JAA which Max speed is 40 rpm.

#25 Rotary Spindle Head, RM25-GMS-T+JAA and RH3-GMS-T+JAA are suitable for complex parts machining, such as 5-axis machining centers and milling & turning integrated CNC Lathe, aerospace industry and automobile engine and so on.

Equipped with high resolution encoder, achieve high position and repeatable accuracy.

Compatible to many kinds major controllers as customers demand.

Outlet of lines at the axis of rotation with simple and pleasing body.

#25 Rotary Spindle Head, RM25-GMS-T+JAA, tool holder is ISO25, Max. speed is 30000 rpm, and rotary table JAA is 40 rpm.

#25 Rotary Spindle Head, RH3-GMS-T+JAA, tool holder is HSK32E, Max. speed is 30000 rpm, and rotary table JAA is 40 rpm.

Specification

Rotary Table Specifiction
ROTARY TABLE NO. ROTARY TABLE  MAX. SPEED SWING ANGLE POSITION ACCURACY REPEATABLE ACCURACY WORKING TORQUE BRAKING TORQUE
JAA 40rpm ± 100° ± 8 arc-sec ± 3 arc-sec 220 N-m 500 N-m (Option)
Rotary Spindle Specifiction
MODEL NO. TOOL HOLDER MAX. SPEED
(RPM)
NO. OF BEARINGS SC CTS BRAKING ENCODER
(PULSE/REV)
POWER
(KW)
DIAMETER OF FRONT BEARING (MM)
RM25-GMS-T ISO25 24000
30000
4 Option     512
(1024)
5.5KW Ø 30
RH3-GMS-T HSK32E
Table Of Outer Dimensions Of Rotary Spindle Head
ROTARY SPINDLE HEAD NO. L1 L2 L3 L4 L5 L6
(MIN.)
L7 L8 D1
(H7)
REFERENCE
RM25-GMS-T+JAA
RH3-GMS-T+JAA
160 185 247.6 90 207 320 285 280 240 Diagram 5
