Vertical Bandsaw with Stationary Table

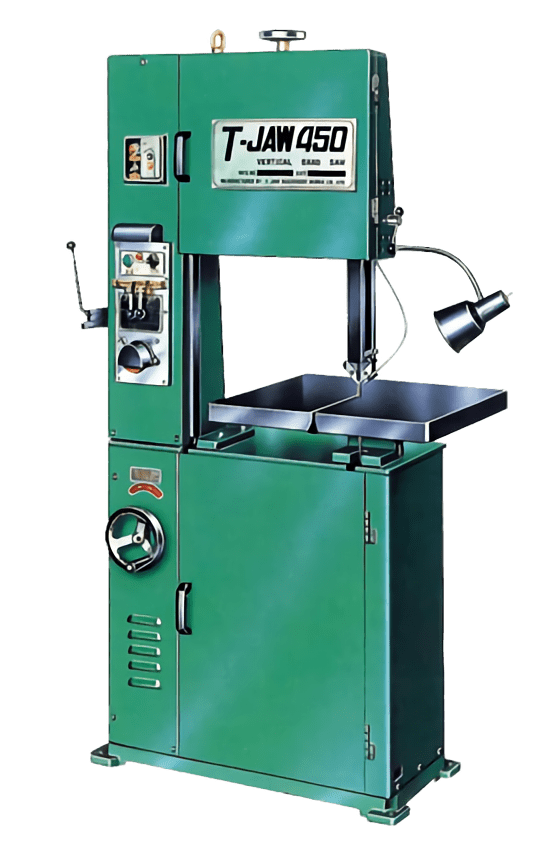

Vertical Variable Speed Bandsaw with Stationary Table-MODEL 450
MODEL 450
STANDARD MACHINE FEATURES:
Infinitely variable speed.
The band tension is cushioned.
Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
Interchangeable rubber bonded saw wheels.
Brush for cleaning lower drive wheel.
Manintenance-free airpump provides air to remove chips from the point of cut.
The upper wheel could be adjusted for band tensioning.
Hand wheel controlled speed.
Adjustable saw blade guides.
Machine light is fitted.
Change speeds while the machine is in operation, without stopping, without pulley changes.
Cast iron frame to minimize machine vibration.
Specification
SPECIFICATION | mm (in.) |
Height Under Guide | 254mm 10" |
Throat, Band to Column | 450mm 18" |
Blade Speed | 25-117m/min 82-384ft/min |
Blade Width | 3-15mm 1/8"-5/8" |
Blade Length | 3570mm 140-1/2" |
Size of Table | 565×500mm 22-1/4"×19-5/8" |
Tilt, Main Table | 15° R, 15° L 10° F, 10° B |
Motor | 1HP |
Machine Size | 1030×560×1870mm 40-1/2"×22"×73-5/8" |
Net Weight | 380kgs 836lbs |
Ship Weight | 460kgs 1012lbs |
Packing Slze | 1120×700×2050mm 44"×27-1/2"×80-3/4" |
STANDARD FEATURES/ACCESSORIES: | |
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, infinitely variable speed, rubber bonded saw wheels & magnetic switches. |
OPTIONAL ACCESSORIES: 110 Volt Control Lighting |
