Vertical Bandsaw with Auto-Sliding Table

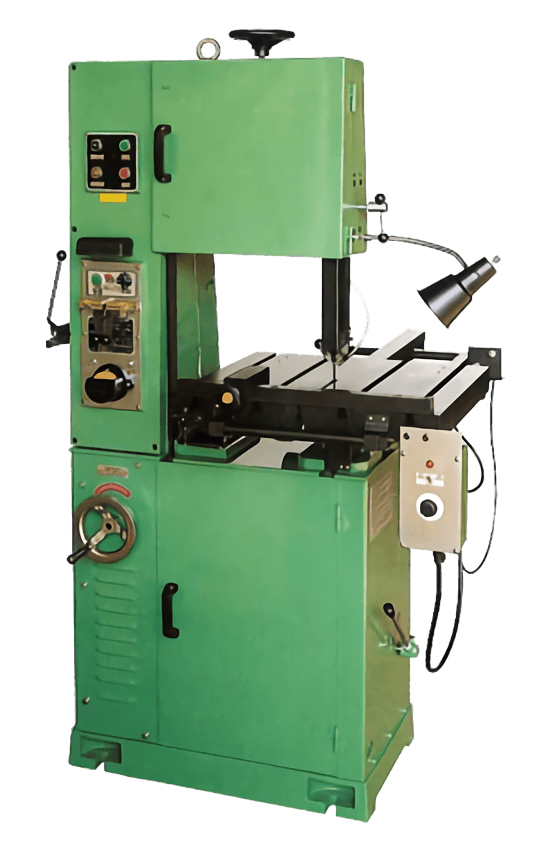

Vertical Variable Speed Bandsaw with Auto-Sliding Table-MODEL 400D
MODEL 400D

STANDARD MACHINE FEATURES:
Infinitely variable speed.
The band tension is cushioned.
Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
Interchangeable rubber bonded saw wheels.
Brush for cleaning lower drive wheel.
Manintenance-free airpump provides air to remove chips from the point of cut.
The upper wheel could be adjusted for band tensioning.
Hand wheel controlled speed.
Adjustable saw blade guides.
Machine light is fitted.
Change speeds while the machine is in operation, without stopping, without pulley changes.
Cast iron frame to minimize machine vibration.
The machine is with a device for automatic linear cutting.
Work table may take speedy reverse movement.
Moton of work table is controlled by stepless speed controller.
Work table is with auto stoppers.

Specification

SPECIFICATION mm (in.)
Height Under Guide 215mm
8-1/2"
Throat, Band to Column 400mm
15-3/4"
Blade Speed 20-376m/min
65-1233ft/min
Blade Width 3-15mm
1/8"-5/8"
Blade Length 3300mm
129-7/8"
Size of Table 600×560mm
23-5/8"×22"
Tilt, Main Table 5° R, 5° L
Motor 2HP
N0. of "T" Slots in Table 4
Table Stroke 260mm
10-1/4"
Table Feed Operation Electric Powered
Machine Size 1015×1040×1880mm
40"×40-7/8"×74"
Net Weight 580kgs
1276lbs
Ship Weight 670kgs
1474lbs
Packing Size 1010×910×2000mm
39-3/4"×35-7/8"×78-3/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 "T" slots in table ,infinitely variable speed, rubber bonded saw wheels , magnetic switches , electric powered table, 110 volt control & lighting.
OPTIONAL ACCESSORIES:
Circle Cutting Attachment
Miter Gauge
