Vertical Bandsaw with Auto-Sliding Table

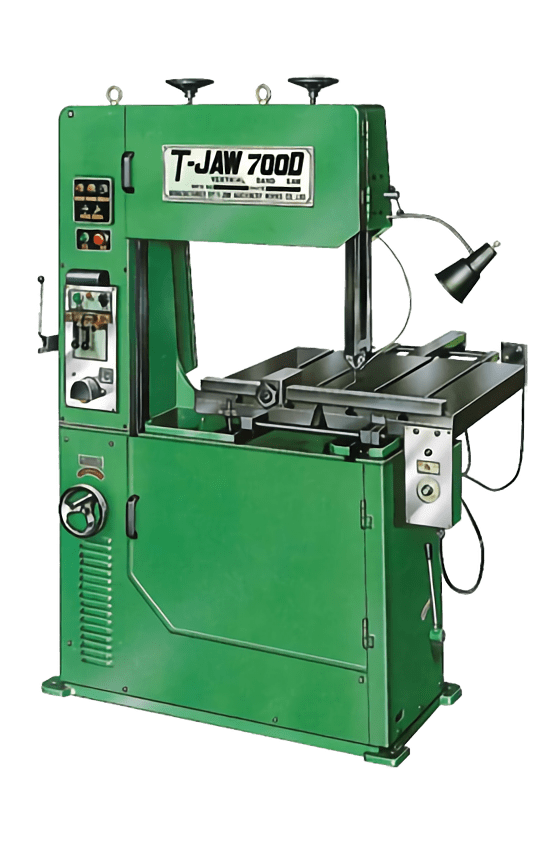

Vertical Variable Speed Bandsaw with Auto-Sliding Table-MODEL 700D
MODEL 700D

STANDARD MACHINE FEATURES:
Infinitely variable speed.
The band tension is cushioned.
Blade welder and grinder are front mounted for quick, accurate blade repair and installation.
Interchangeable rubber bonded saw wheels.
Brush for cleaning lower drive wheel.
Manintenance-free airpump provides air to remove chips from the point of cut.
The upper wheel could be adjusted for band tensioning.
Hand wheel controlled speed.
Adjustable saw blade guides.
Machine light is fitted.
Change speeds while the machine is in operation, without stopping, without pulley changes.
Cast iron frame to minimize machine vibration.
The machine is with a device for automatic linear cutting.
Work table may take speedy reverse movement.
Moton of work table is controlled by stepless speed controller.
Work table is with auto stoppers.

Specification

SPECIFICATION mm (in.)
Height Under Guide 325mm
12-5/8"
Throat, Band to Column 700mm
27-1/2"
Blade Speed 20-394m/min
65-1292ft/min
Blade Width 3-25mm
1/8"-1"
Blade Length 4090mm
161"
Size of Table 740×680mm
29-1/8"×26-3/4"
Tilt, Main Table 5° R, 5° L
Motor 2HP
N0. of "T" Slots in Table 4
Table Stroke 320mm
12-1/2"
Table Feed Operation Electric Powered
Machine Size 1420×1200×2040mm
55-7/8"×47-1/4"×80-3/8"
Net Weight 730kgs
1606lbs
Ship Weight 830kgs
1826lbs
Packing Size 1340×880×2090mm
52-3/4"×34-5/8"×82-1/4"
STANDARD FEATURES/ACCESSORIES:
Blade welder, shear, grinder, work light, blade guides, chip blower, cleaning brush, rip fence, 4 "T" slots in table ,infinitely variable speed, rubber bonded saw wheels , magnetic switches , electric powered table, 110 volt control & lighting.
OPTIONAL ACCESSORIES:
Circle Cutting Attachment
Miter Gauge
