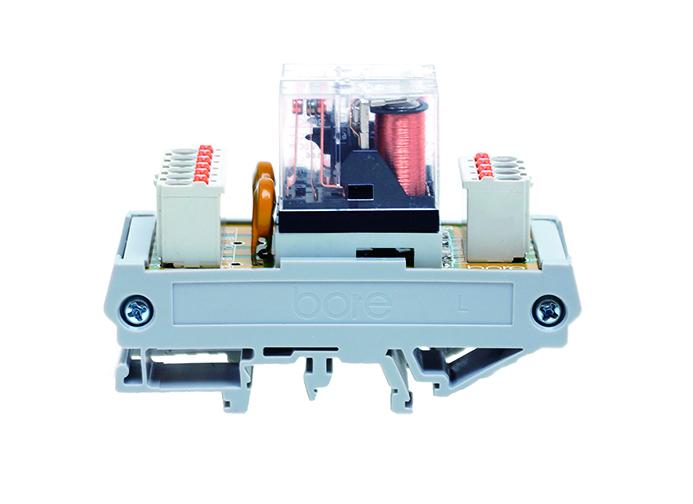

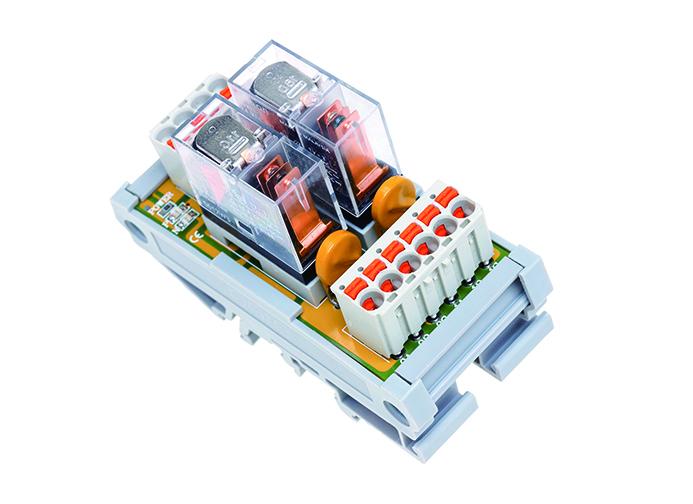

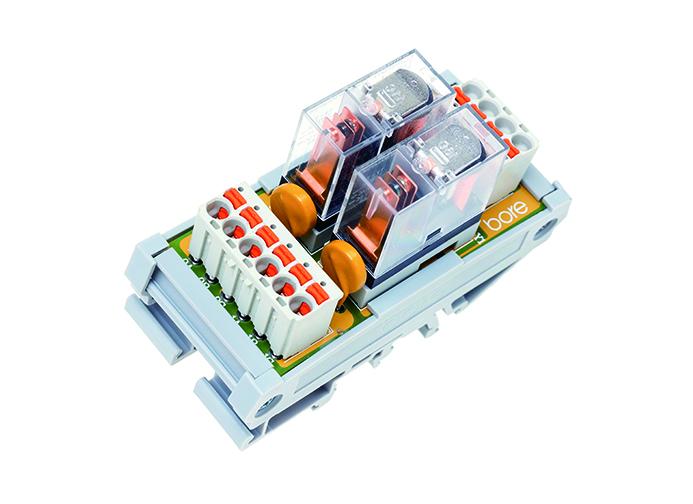

Omron Relay Module
G2R-OR02V-SP
G2R-OR
G2R-OR-SP Series
1c contact (SPDT)
PCB terminal block
with varistor for spark elimination
for matching with FRC connector (IDC)
PLC/CNC PCB Relay Interface Board Module
Specification
| Item | Specification |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | PCB terminal block |
| Protector : | Varistor |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Relay type : | OMRON G2R-1-E |
| Machenical durability : | AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min. (at 18,000 operation/hr) |
| Electrical durability : | 100,000 operations min (at 1800 operation/hr under rated load) |
| Resistive load : | 16A 250VAC 16A 30VDC |
| Inductive load : | 8A 250VAC 8A 30VDC |
| Dielectric strength (between coil and contact) : | 5000 VAC, 50/60Hz for 1 min. |
| Dielectric strength (across contacts of same poles ) : | 1000 VAC, 50/60Hz for 1 min. |
| Machenical max. operating frequency : | 18,000 operation/hr |
