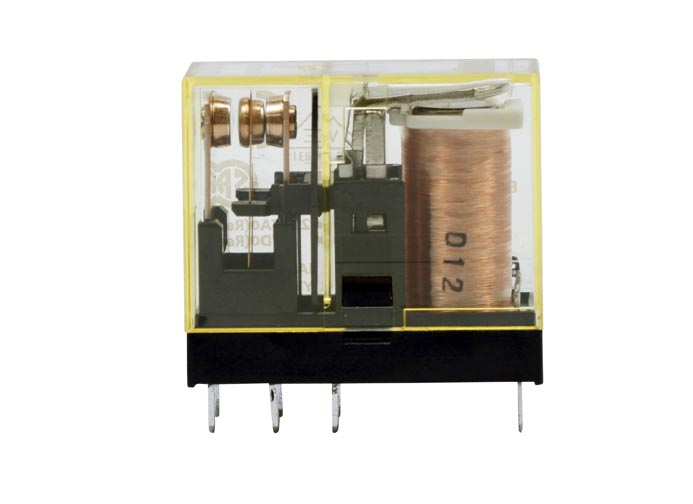

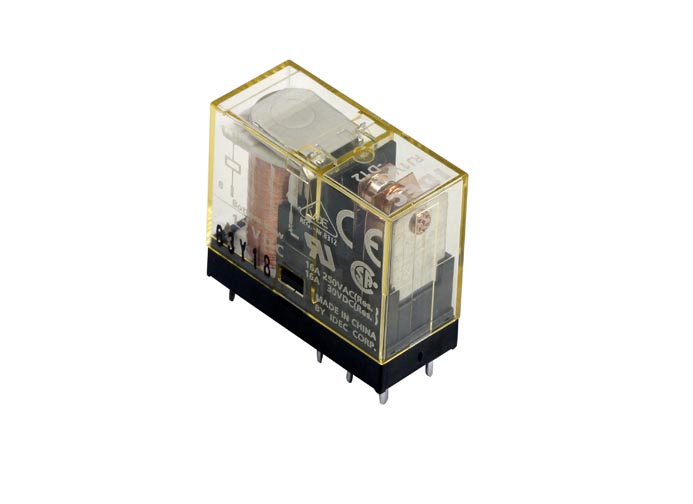

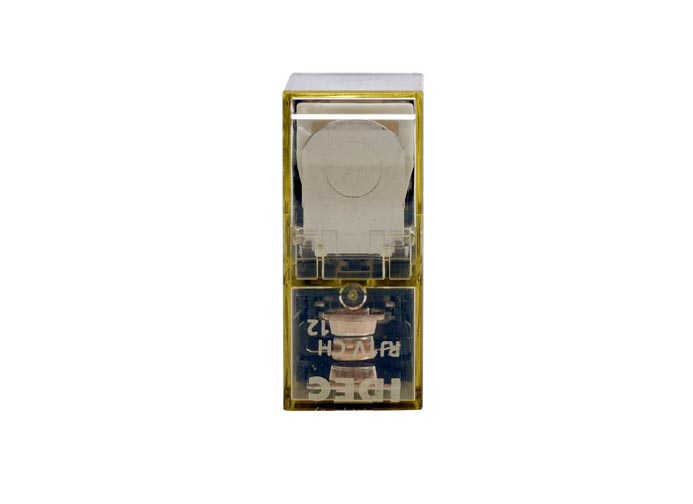

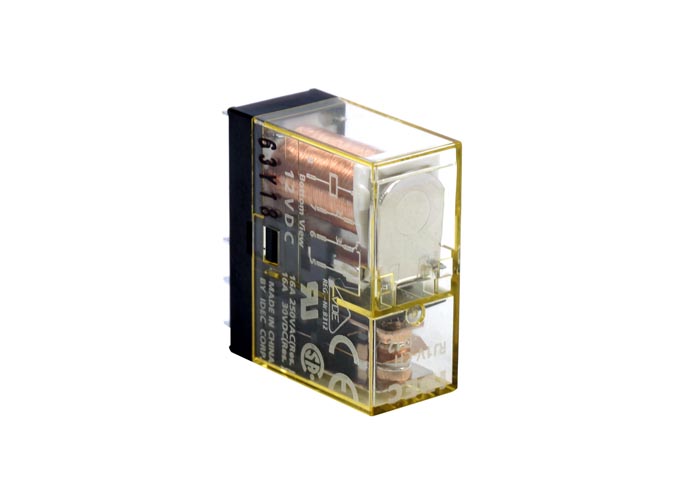

RJ1V-CH-DC12
RJ

RJ-PCB Power Relay Series

Compact and rugged power relays
Large switching capacity
Compact housing only 12.7-mm wide.

Specification

Item Specification
Model Type: RJ1V-CH-DC24
Contact Form: 1c (SPDT)
Number of poles: 1 pole
Contact Rated Load Voltage: 250VAC, 30VDC
Resistive Load: 16A, 250VAC / 8A, 30VDC
Inductive Load: 8A, 250VAC / 4A, 30VDC
Allowable Switching Current: 16 A
Allowable Switching Voltage: AC250V DC125V
Coil Rated Current: 22.1 mA
Coil Resistance: 1,080 Ω (±10%, 20 ºC)
Power Comsumption: Approx. 0.53
Operate Time: 15 ms maximum
Release Time: 10 ms maximum (with diode: 20 ms maximum)
Dielectric Strength (Between coil and contacts): 5000V AC, 1 minute
Dielectric Strength (Between contacts of the same polarity): 1000V AC, 1 minute
Vibration Resistance (Operating extremes): 10 to 55 Hz, amplitude 0.75 mm
Vibration Resistance (Damage limits): 10 to 55 Hz, amplitude 0.75 mm
Shock Resistance (Operating extremes): NC contact: 100 m/s2
Shock Resistance (Damage limits): 1000 m/s2
Electrical Life (rated load): AC load: 200,000 operations minimum (operation frequency 1800 operations per hour) DC load: 100,000 operations minimum (operation frequency 1800 operations per hour)
Mechanical Life (no load): AC coil: 30,000,000 operations minimum (operation frequency 18,000 operations per hour) DC coil: 50,000,000 operations minimum (operation frequency 18,000 operations per hour)
Operating Temperature: –40 to +70°C (no freezing)
Operating Humidity 5 to 85% RH (no condensation)
