Omron Relay Module

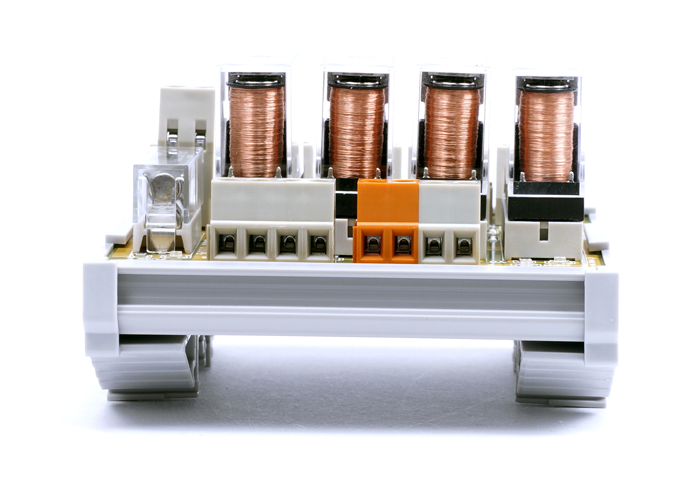

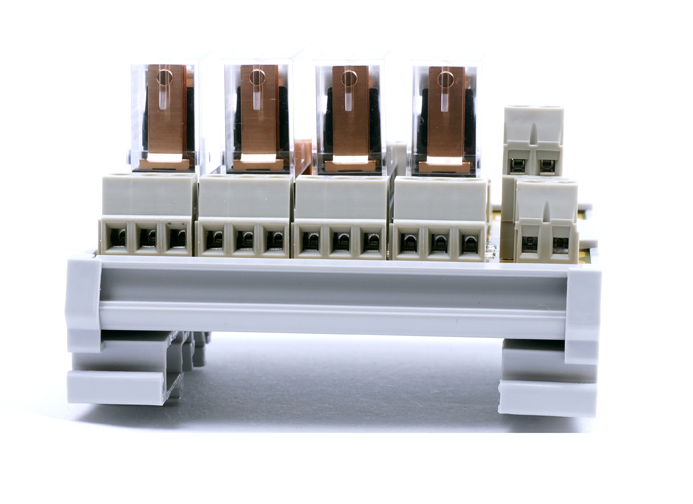

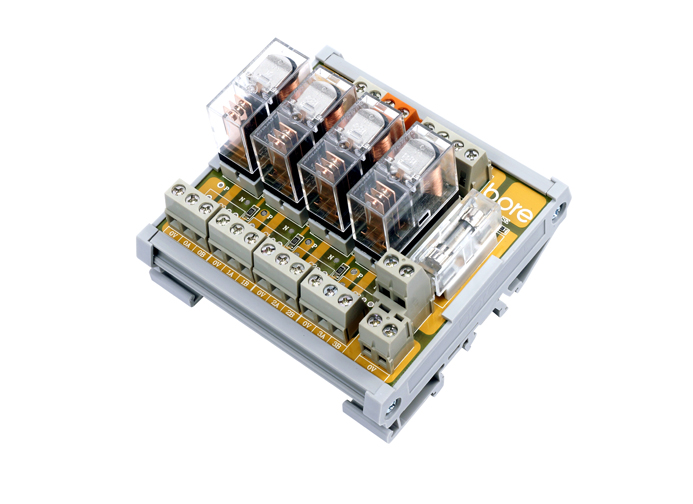

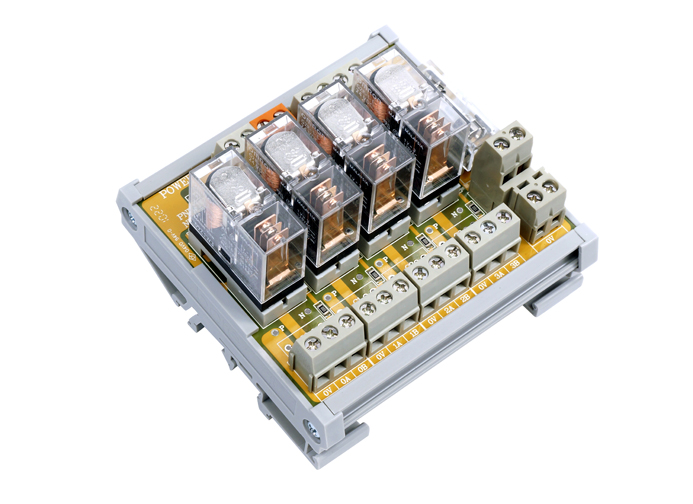

G2R-OT04
G2R-OT
G2R-OT Series
1c contact (SPDT)
PCB terminal block for output
10A fuse
for matching with FRC connector (IDC)
PLC/CNC PCB Mounted Relay Interface Board Module
Specification
Item | Specification |
Contact configuration : | 1c |
Pole type : | 1 pole |
Terminal block type : | PCB terminal block |
LED power status indicator : | Green light |
LED motion status indicator : | Red light |
Relay type : | OMRON G2R-1-E |
Machenical durability : | AC coil: 10,000,000 operations min. DC coil: 20,000,000 operations min. (at 18,000 operation/hr) |
Electrical durability : | 100,000 operations min (at 1800 operation/hr under rated load) |
Resistive load : | 16A 250VAC , 16A 30VDC |
Inductive load : | 8A 250VAC, 8A 30VDC |
Dielectric strength (between coil and contact) : | 5000 VAC, 50/60Hz for 1 min. |
Dielectric strength (across contacts of same poles ) : | 1000 VAC, 50/60Hz for 1 min. |
Machenical max. operating frequency : | 18000 operation/hr |
Electrical max. operating frequency : | 1800 operation/hr (under rated load) |
