Products

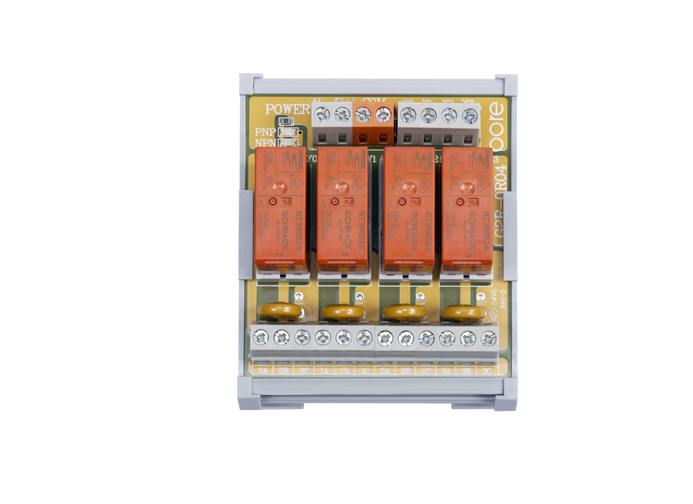

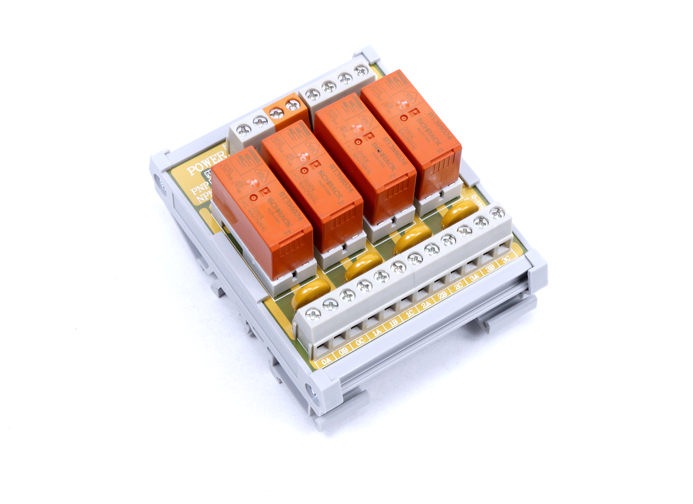

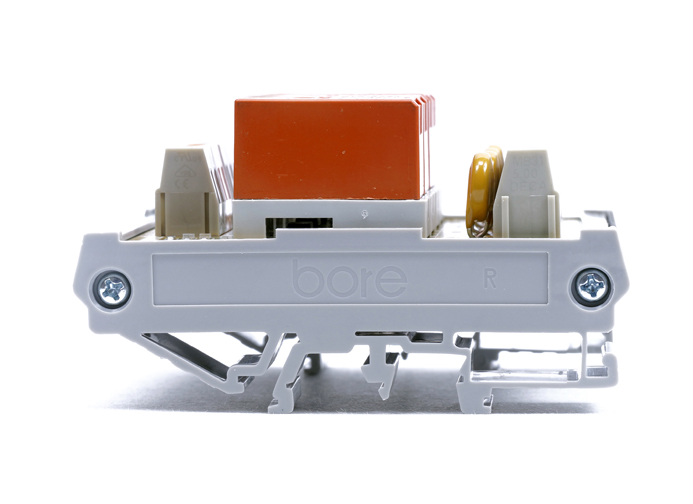

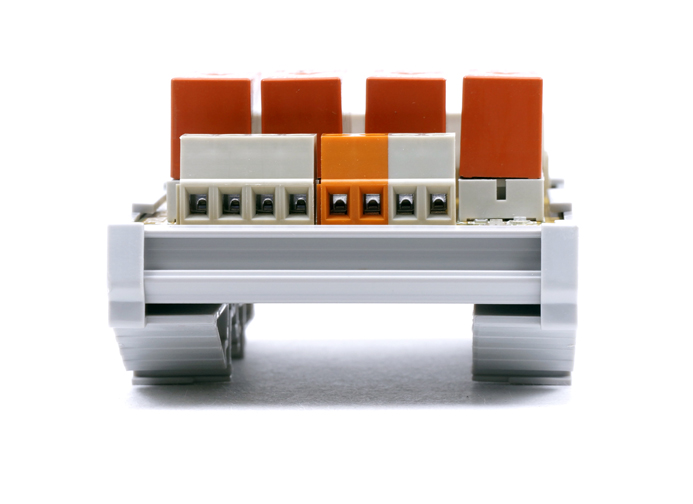

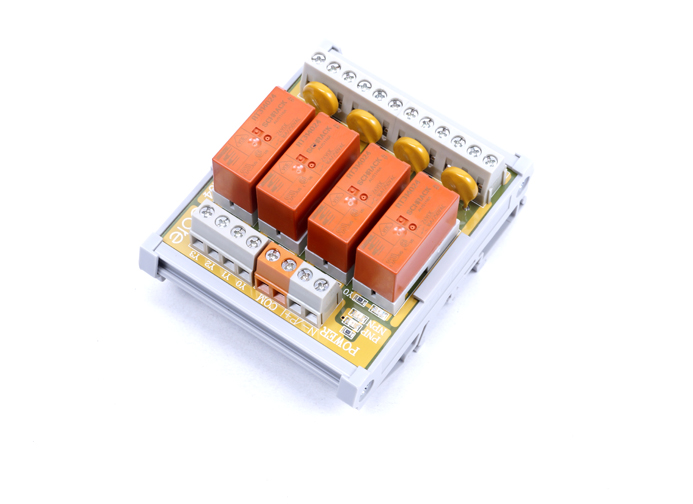

Schrack Relay Module
G2R-OR04-SP-SR
G2R-OR-SP-SR

G2R-OR-SP-SR Series

1c contact (SPDT)
PCB terminal block
with varistor for spark elimination
for matching with FRC connector (IDC)

Specification

Item Specification

Contact configuration : 1c
Pole type : 1 pole
Terminal block type : PCB terminal block
Protector : Varistor
Relay type : Shrack RT 314024
LED power status indicator : Green light
LED motion status indicator : Red light
Contact max. rated current : 16A
Contact max. rated voltage : 250 VAC
Dielectric strength (between coil and contact) : 5000 VAC, for 1min.
Dielectric strength (between the same polarity) : 1000 VAC, for 1 min.
Machenical durability : AC coil: 10,000,000 operations min. DC coil: 30,000,000 operations min.
