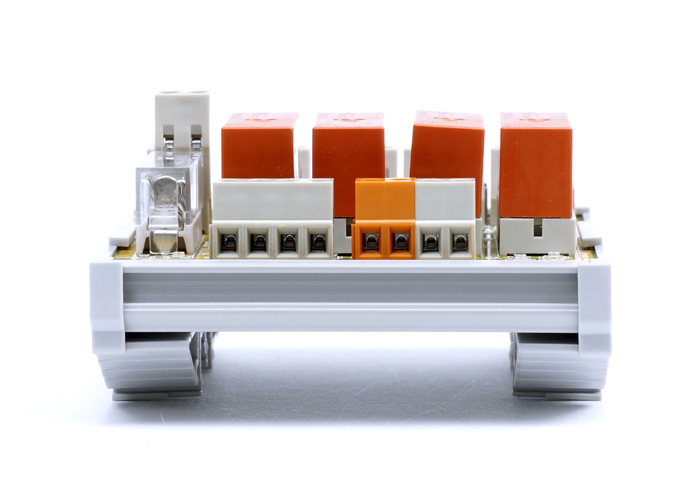

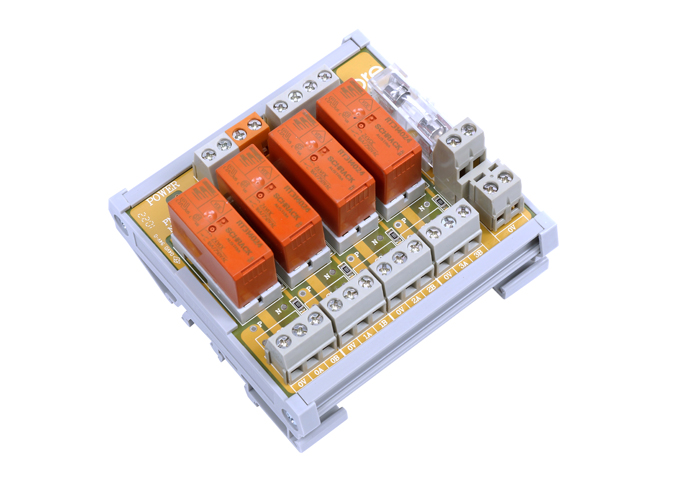

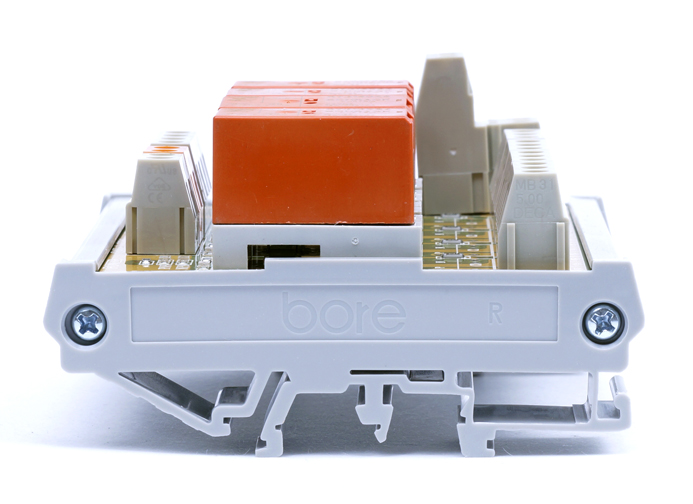

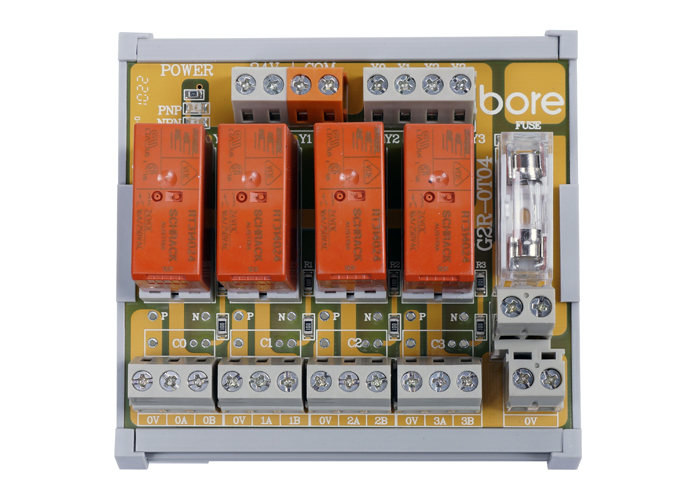

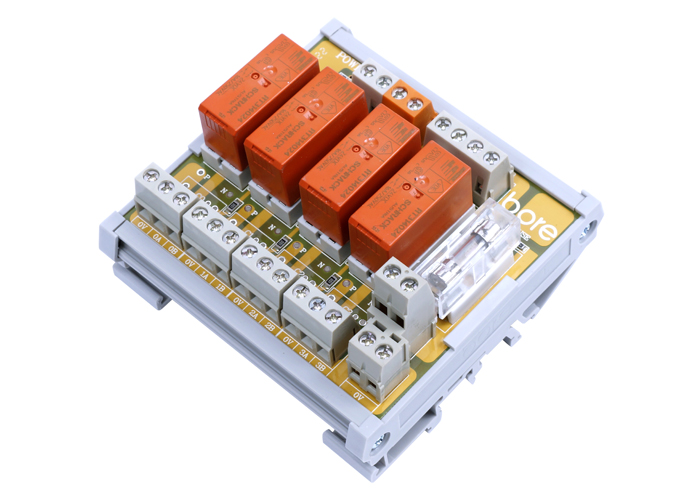

G2R-OT04-SR
G2R-OT-SR
G2R-OT-SR Series
1c contact (SPDT)
PCB terminal block for output
10A fuse
for matching with FRC connector (IDC)
Specification
| Item | Specification |
| Contact configuration : | 1c |
| Pole type : | 1 pole |
| Terminal block type : | PCB terminal block |
| Relay type : | Shrack RT 314024 |
| LED power status indicator : | Green light |
| LED motion status indicator : | Red light |
| Contact max. rated current : | 16A |
| Contact max. rated voltage : | 250 VAC |
| Dielectric strength (between coil and contact) : | 5000 VAC, for 1min. |
| Dielectric strength (between the same polarity) : | 1000 VAC, for 1min. |
| Machenical durability : | AC coil: 10,000,000 operations min. DC coil: 30,000,000 operations min. |
