Products

Milling Heads
Milling Heads

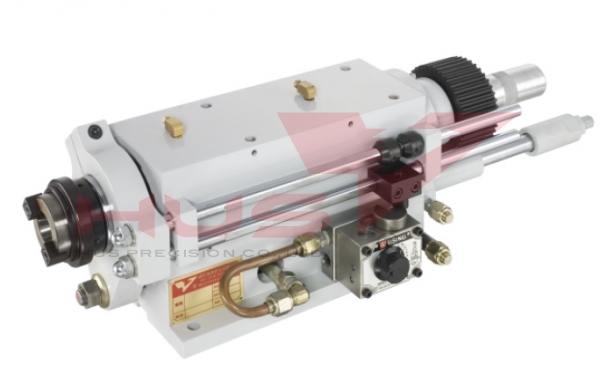

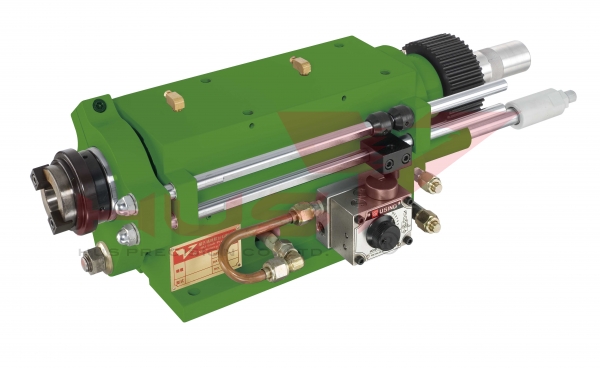

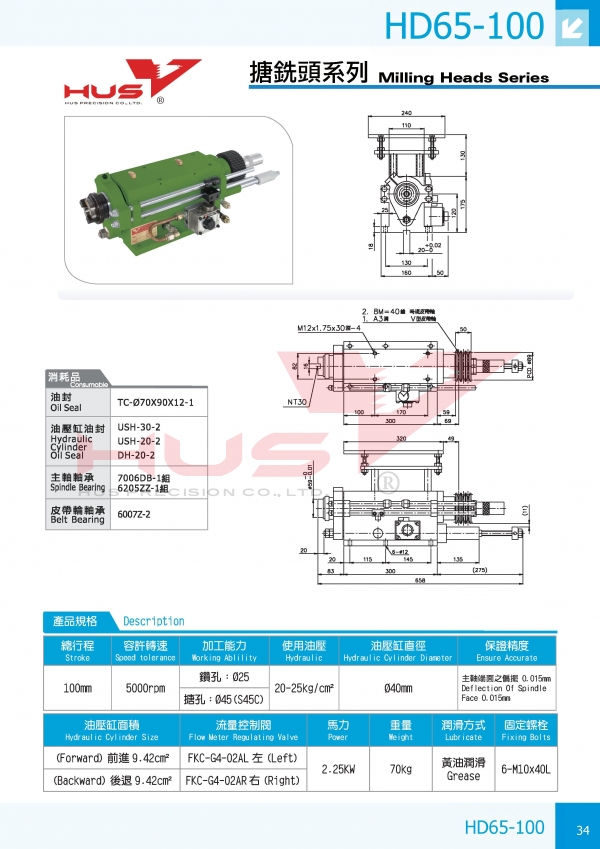

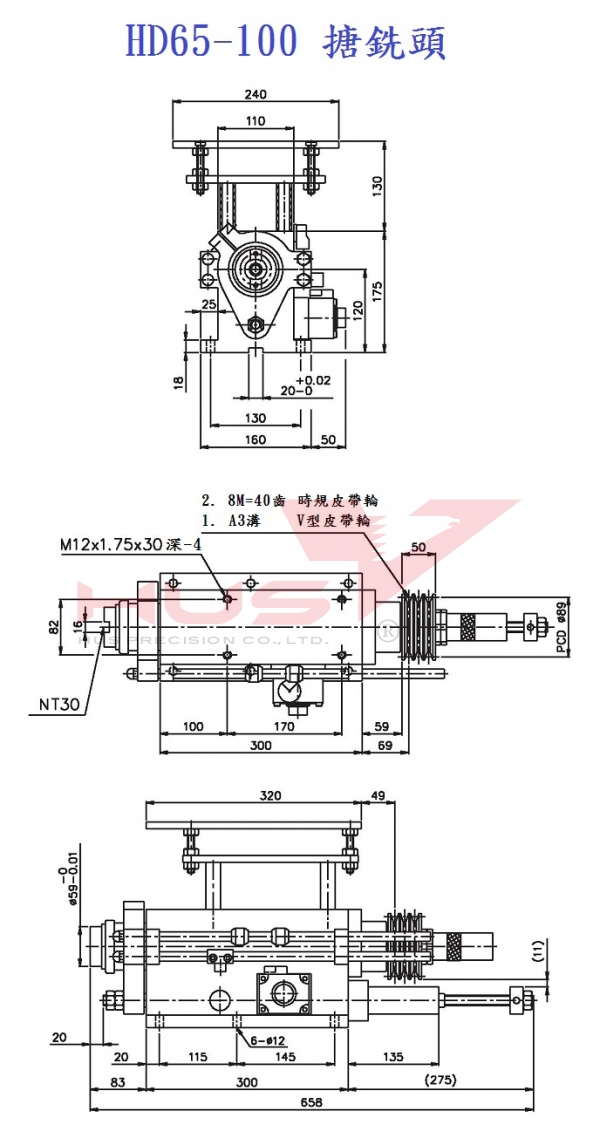

HD65-100

Specification

Total Distances Speed tolerance Processing capacity Hydraulic Hydraulic Cylinder Diameter
100mm 5000 rpm Drilling Ability:Ø25
Boring  Ability:Ø45(S45C)
20-25kg/cm² Ø40
Hydraulic Cylinder Size Flow meter regulating valve Weight
(Forward)9.42cm² (Backward)9.42cm² G4-02AL(Left) G4-02A(Right) 58kg
Ensure Accurate Lubricate Max.Power Fixing screw
  Deflection Of Spindle Face
0.015mm
Grease 2.25KW 6-M10x40L

Consumable

Oil Seal Hydraulic Cylinder  Seal Spindle Bearing Belt Bearing
TC-Ø70X90X12-1 USH-30-2
USH-20-2
DH-20-2

7006DB-1(set)
6205 ZZ-1(pic)

6007Z-2



Mold
Machine
Vehicle
