Spindle heads
Drilling-Tapping Head

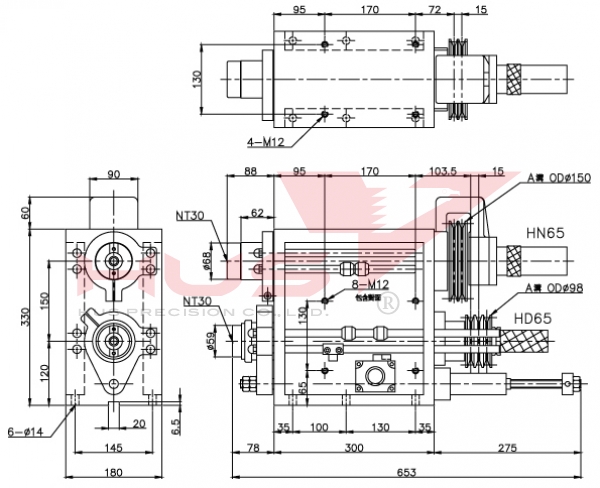

HTD-65

Specification

Drilling  specifications

Total Distances Speed tolerance Processing capacity Hydraulic  Hydraulic cylinder Diameter Hydraulic cylinder Size
100mm 5000rpm Drilling Ability:Ø25
Boring  Ability:Ø45(S45C)
20-25kg/cm² Ø40 (Forward)9.42cm²
(Backward)9.42cm²
Flow meter regulating valve Ensure Accurate Fixing screw
1/4內撥式 Deflection Of Spindle Face
0.015mm
6-M12x45L

Tapping  specifications

Total Distances Speed tolerance Tapping Capacity Fabricated threaded guiding stroke Weight Transmission wheel type
80mm 1000rpm M25(S45C) 0.7-2.5mm 115kg (A)A2-ODØ150
(B)HTD-8M-59T
(C)RS40-2列-35T
Lubricate Ensure Accurate
Grease Deflection Of Spindle Face
0.015mm
