Laser Focused Surface Profile Scanning Measuring Instrument
NH-4N 8 Large Mold Measurement

【 product description 】

* 8 "wafer or larger sample outline rough measurement
* Suitable for all kinds of sample measurement, the load bearing platform is 12kgw
* Stage measurement stroke XYZ: 250 x 200 x 10 mm
* Z-axis measurement optional 110mm
* Optical ruler resolution: XYZ: 0.1 x 0.1 x 0.01um
* Autofocus reproducibility AF σ = 0.03 um
* Electric animal mirror nose wheel switching function
* Other function expansion requirements, please call to inquire

_______________________________________________________

【 products characteristics 】

In addition to the automatic contour measurement function, this instrument can also be purchased with an automatic image measurement module that uses ISO-approved point laser autofocus probe measurement (PAP), the only high-precision laser measurement for autofocusing surface contours. Meter, high repeat accuracy.
* Suitable for measuring materials: transparent, opaque, soft, hard, dark color, light color, high reflectance, low reflectance materials can be measured

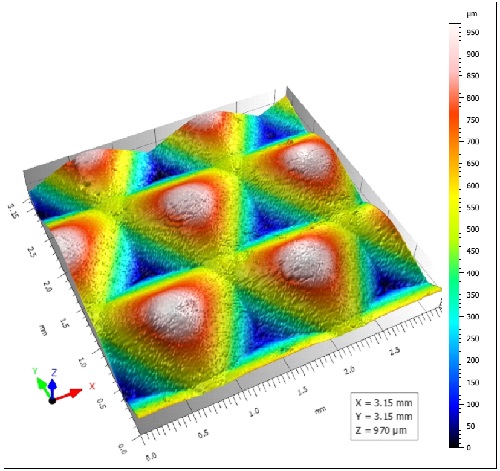

* Examples of measurable samples: surface profile, surface roughness, V Groove profile, volume wear, dimensional step angle, flatness measurement, step height, ... etc.
* Product application: precision slides, precision screws, precision gears, precision bearings, glass panels, bio-chips, rubber products, semiconductor wafers, contact lenses, grease ...
