Products

Hot Forging Furnace
High-Frequency Induction Forging-IGBT Series

Product Intro :
Application:All kinds of metal material heating in Forging Industry

Magnet's IGBT High-Frequency Forging Equipment is a more internationally competitive forging equipment, it has high power conversion efficiency, low power lose, faster heating speed, stable performance and the cooling tower only needs half of the SCR's.


Brief Introduction :

1. It's a kind of maunfacturing process.

2. Buy through the coil to heat the material to gain the plasticity to get the shaped workpiece.

3. Use IGBT High-Frequency Power Tank to save the power lose when forging.



Characteristic :

1. Coil : Use copper tube to achieve the best efficient.

2. V-shaped rails : easy to do maintenance and cleaning.

3. Automatically lowers power system : no more worry about the material melting while stuck inside the coil.

4. Customized : Base on the customers need to do the equiopment.

Specification

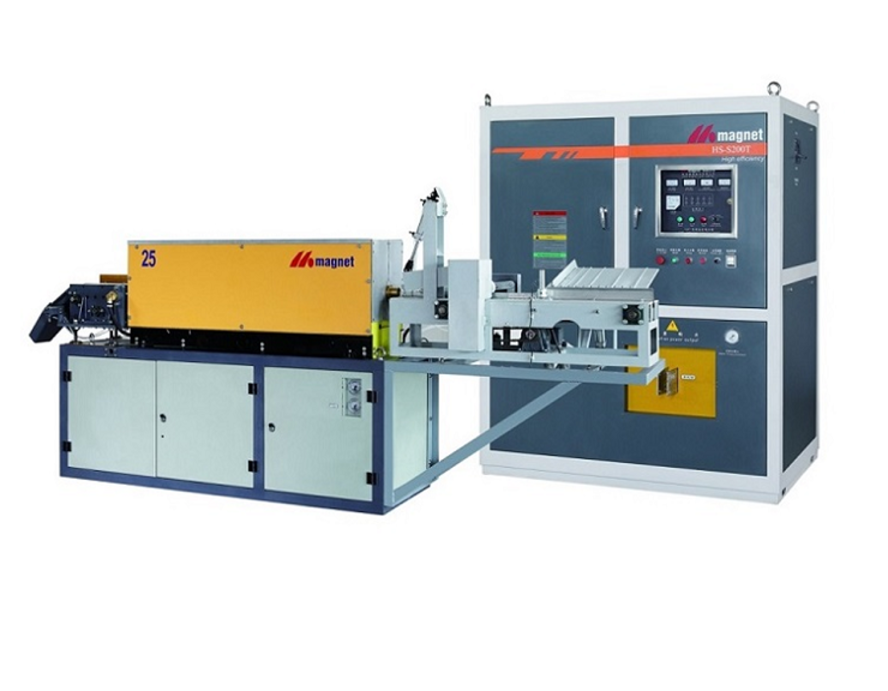

Forging Equipment-Separate Type

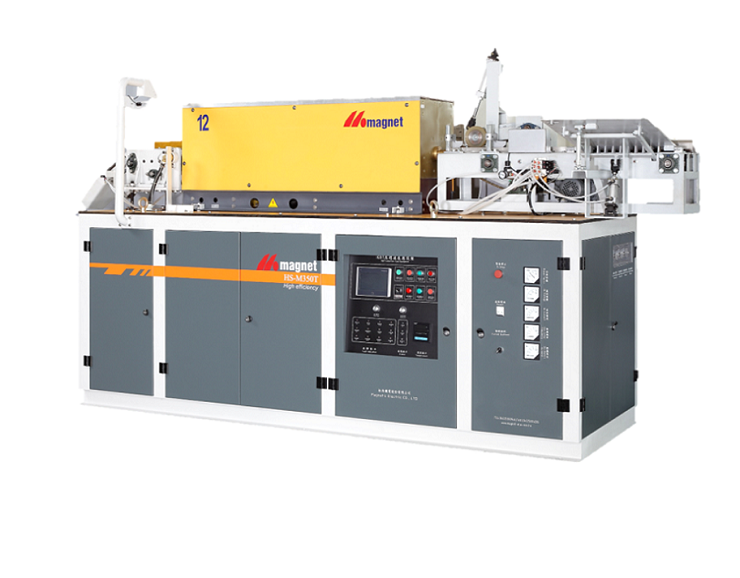

Forging Equipment-Integrated Type

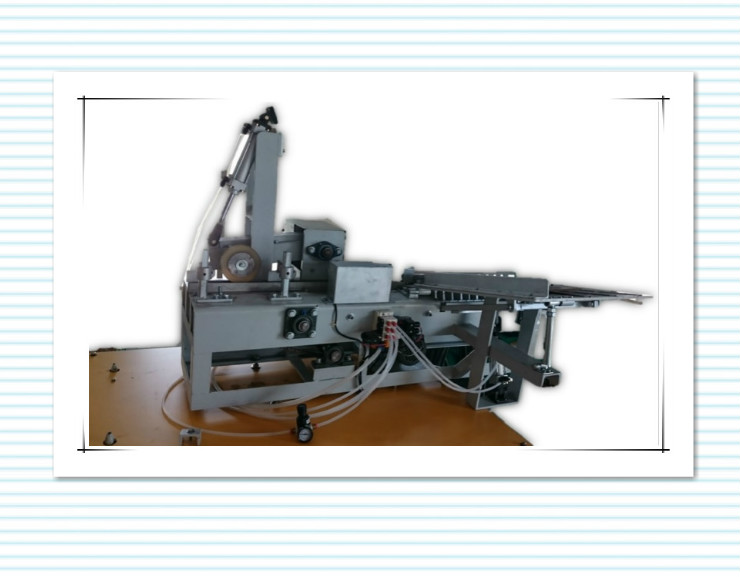

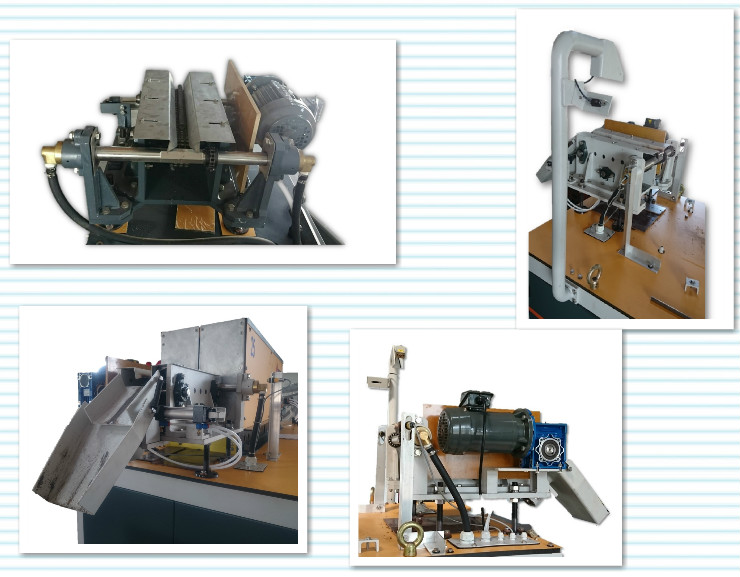

Discharging System

Counter : calculate the number of forged workpieces

Temperature Filter : control temperature and yield

Vibrated design and cooling system : avoid workpiece stuck under high temperature

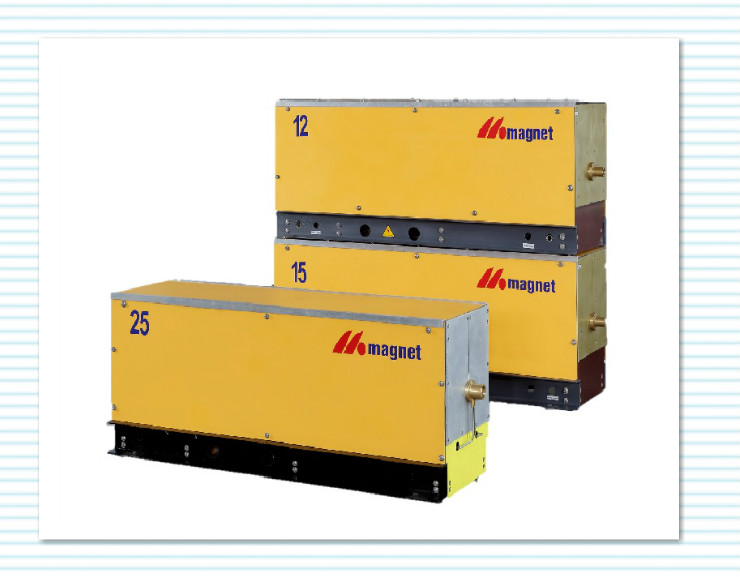

Furnace

※Covered with bakelite plates, sturdy and stackable

※High-specification coil, fully insulation, high voltage resistant

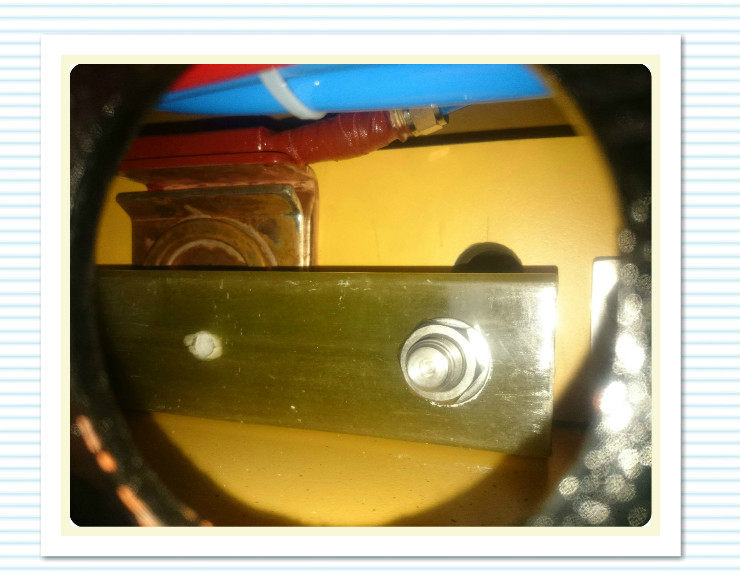

※High temperature resistant ceramic tube, which can be replaced by yourself

Modular assembly

※Can fix quickly to shorten repair time

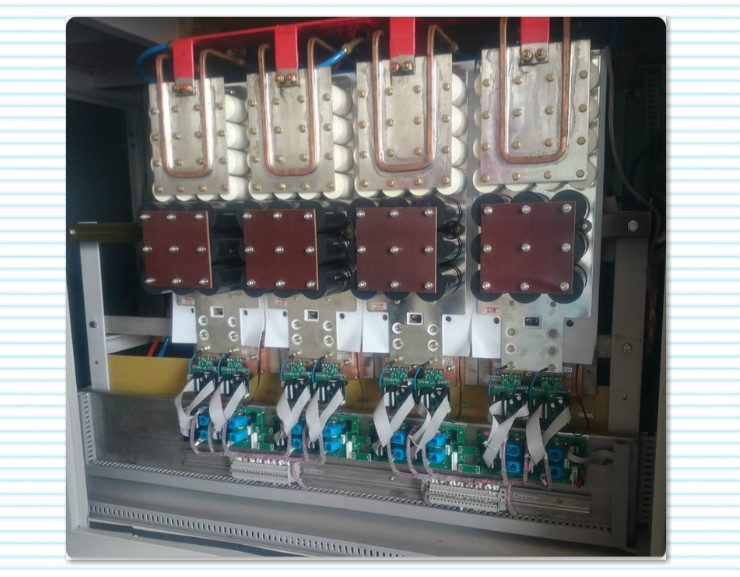

Inner Structure

※Use splint copper plate, easy to change and lower the loses of the current.

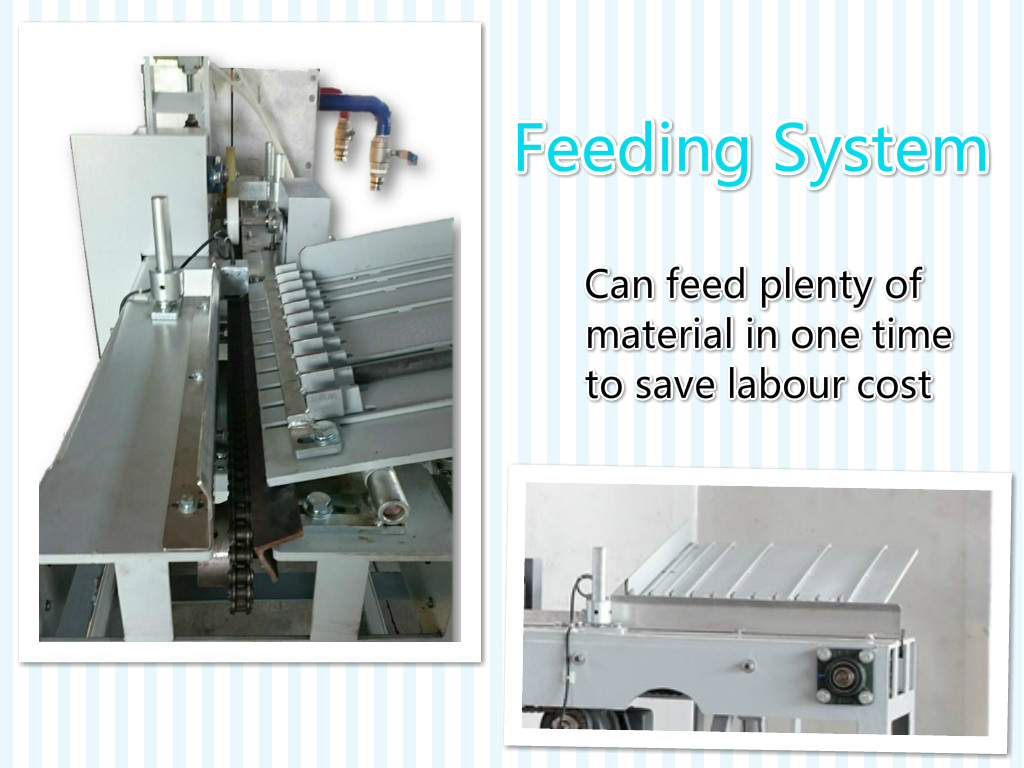

Feeding System

※You can put a large number of material on the feeding system in order to save some labor costs.

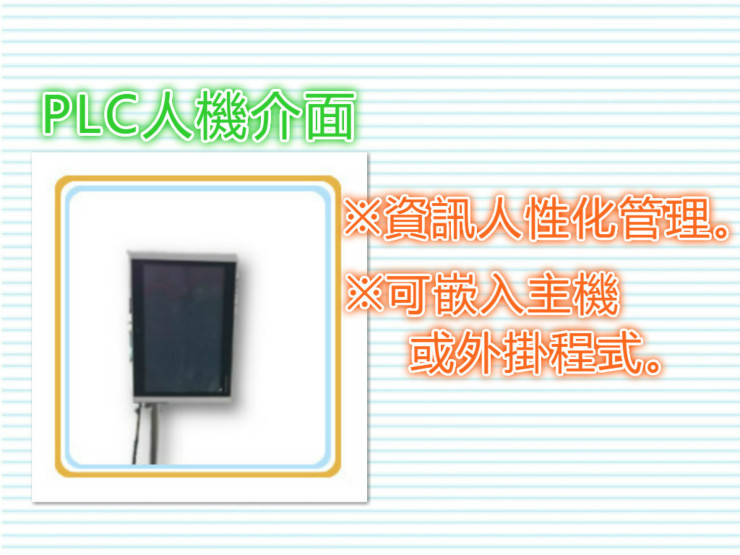

PLC System

※Humanize management

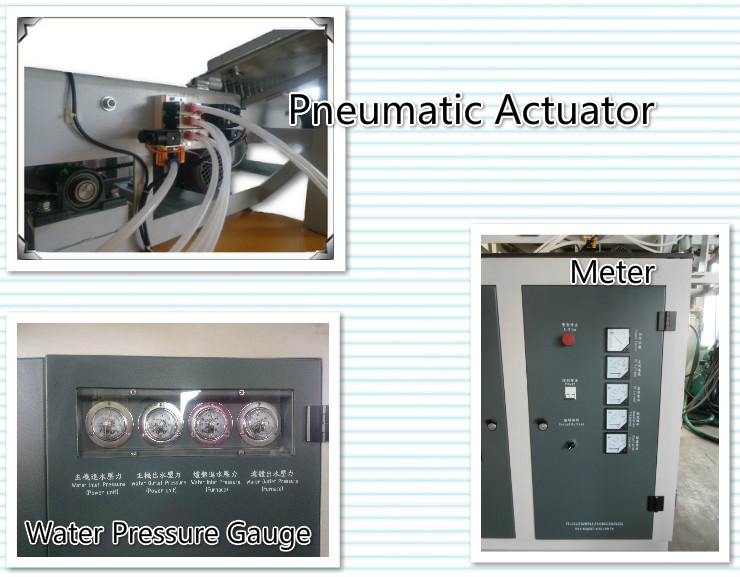

Meter

※Clearly and easy to understand all the index of the equipment.



Water Pressure Gauge

※Power tank operation indicator



IGBT Series

型號
Type
HS-S200T HS-S250T HS-M350T HS-M500T
Type Vertical Vertical Horizontal Horizontal
Structure Separate Separate Integrated Integrated
Vol./Fre. 415V/60Hz 415V/60Hz 415V/60Hz 415V/60Hz
Working Fre. (K-Hz) 10-20 10-20 10-20 10-20
Power Request (KVA) 260 310 450 610
Output Power (KW) 200 250 350 500
Input Ampere (A) 300 350 525 750
Power Continuous Rate (%) 100% 100% 100% 100%
Cooling Water Pressure (Kg/Cm²) 2.5 - 3 Kg/Cm² 2.5 - 3 Kg/Cm² 1.5 - 3 Kg/Cm² 1.5 - 3 Kg/Cm²
Weight (kg) 680 700 1300 1300
Dimension (mm) 1600X1000X1950 1600X1000X1950 3000X1000X1300 4000X1000X1300
