Casting Centrifuge

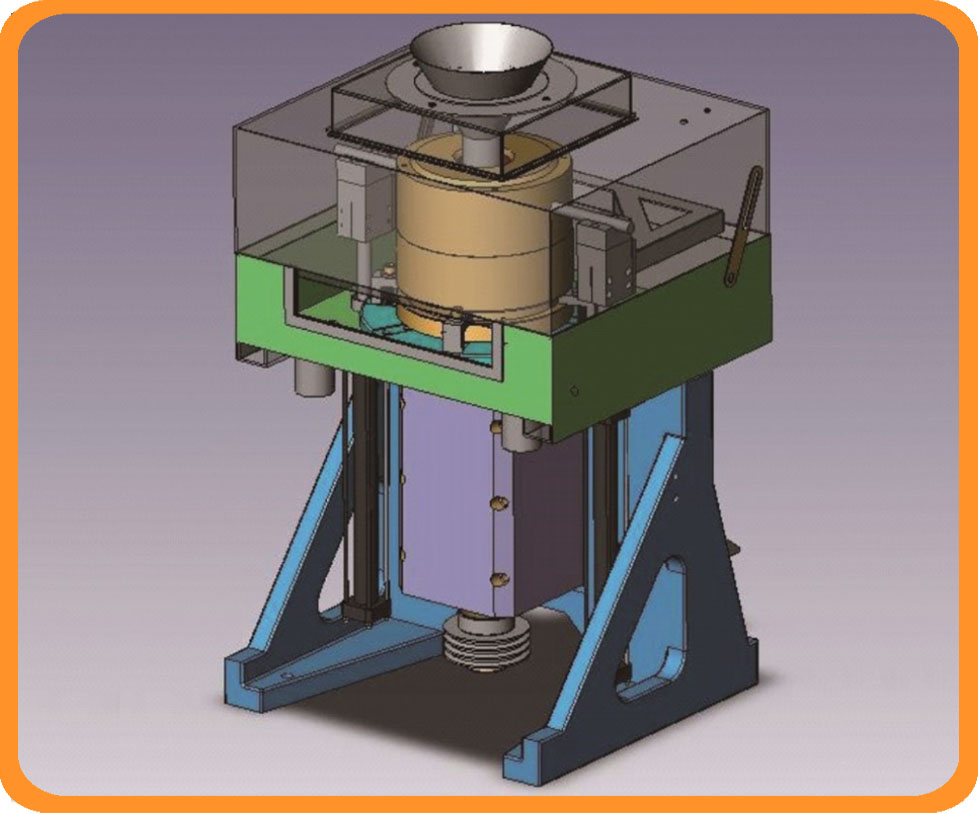

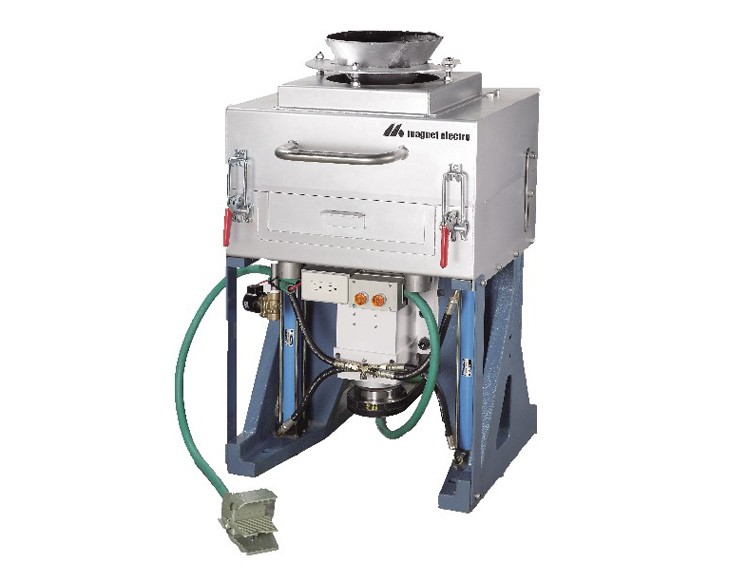

Vertical Centrifugal Cast Machine


Vertical Centrifugal Cast Machine
Product Intro :
Application:Cast-steel, Cast iron, Copper, Aluminum, Alloy, Superalloy and so on Make all kinds of materials with slope and irregular shape.

Features:
Use Stainless Steel to do the shell, durable and assembly with high-precision
Have the skill of research which can assist the product design
The spindle of Vertical Centrifugal Cast Machine has special design, it can resist high temperature and it's easy to do maintenance
Personalized operation, it's easy for an engineer to operate multiple machines
Application:

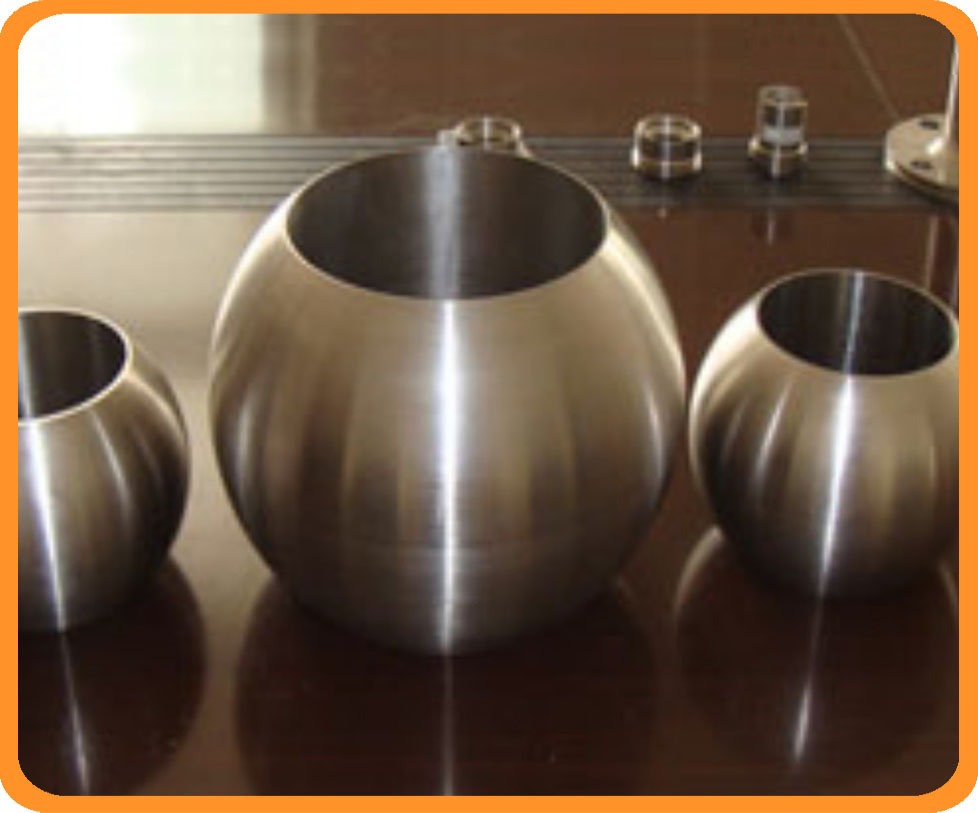

Cast-steel, Cast iron, Copper, Aluminum, Alloy, Superalloy and so on Make all kinds of materials with slope and irregular shape
Customer:
Produce Globe Valve, Piston Ring, Liner, Flange Gasket Golf and other kinds of accessories

Specification



Type Height Suitable diameter for module
ME-CV380 320mm φ220 ,φ280
ME-CV520 360mm φ280 ,φ320 φ370 ,φ420
ME-CV700 520mm φ420 ,φ470 φ520 ,φ570
ME-CV900 730mm φ570 ,φ670 φ770
ME-CV1200 940mm φ670 ,φ770 φ870
ME-CV1500 1050mm

φ770 ,φ870 φ970
