Drilling Spindle
Drilling Head

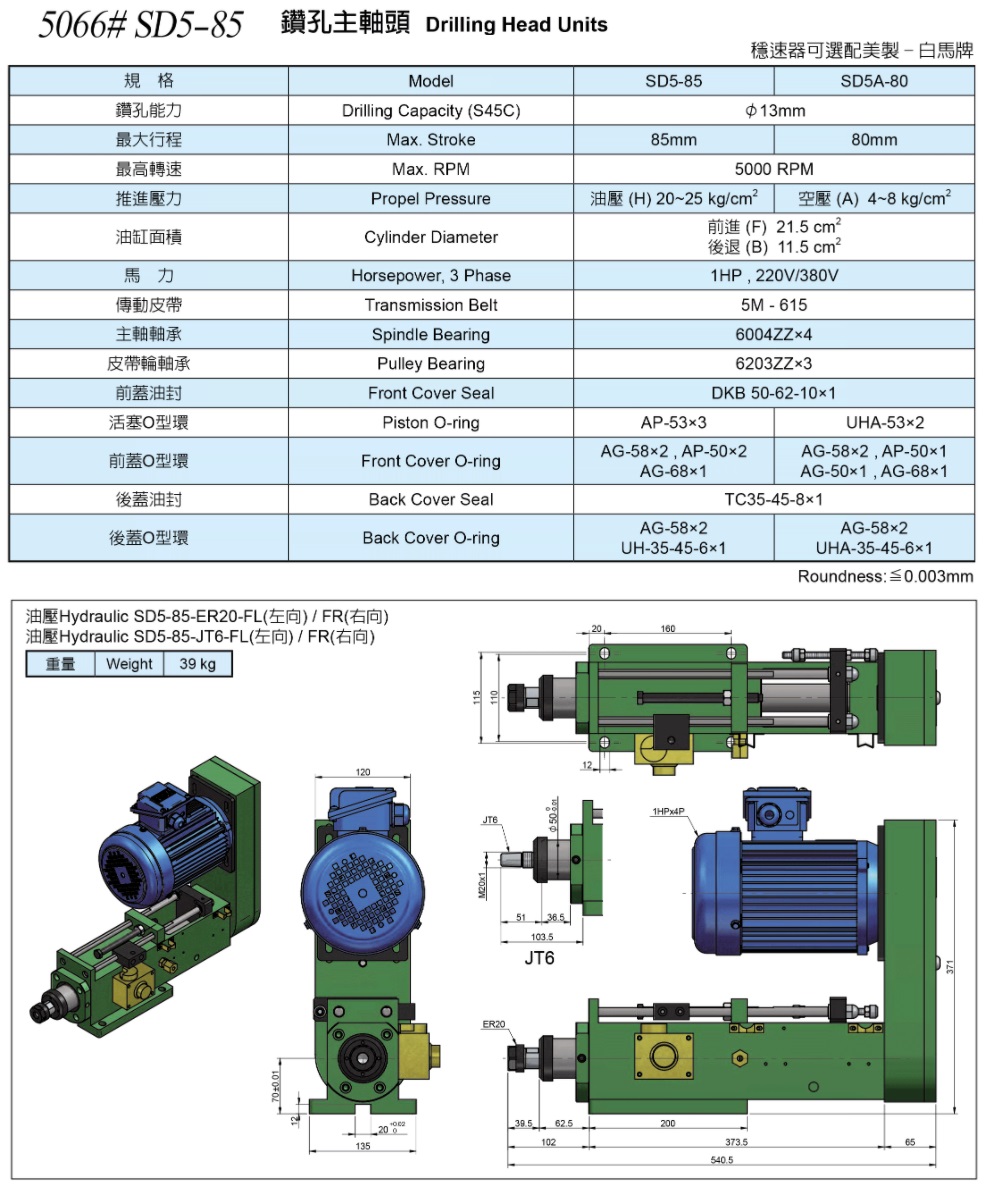

SD5
SD5 is an automated selfeeder drilling head unit with an oil damper for air feed or hydraulic valve to control the feeding rate. The accuracy of spindle nose is strictly under 0.003mm and maximum drilling capacity up to 13mm (S45C).
This unit allows to perform all types of machining applications such as drilling, chamfering, reaming and countersinking.
Specification
． Standard 3-phase AC motor 0.75kW is included, optional maximum power up to 1.5kW
． Belt driven at fixed speed and incorporate a timing belt
． Spindle taper ER20 and JT6 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
