Boring Milling Head

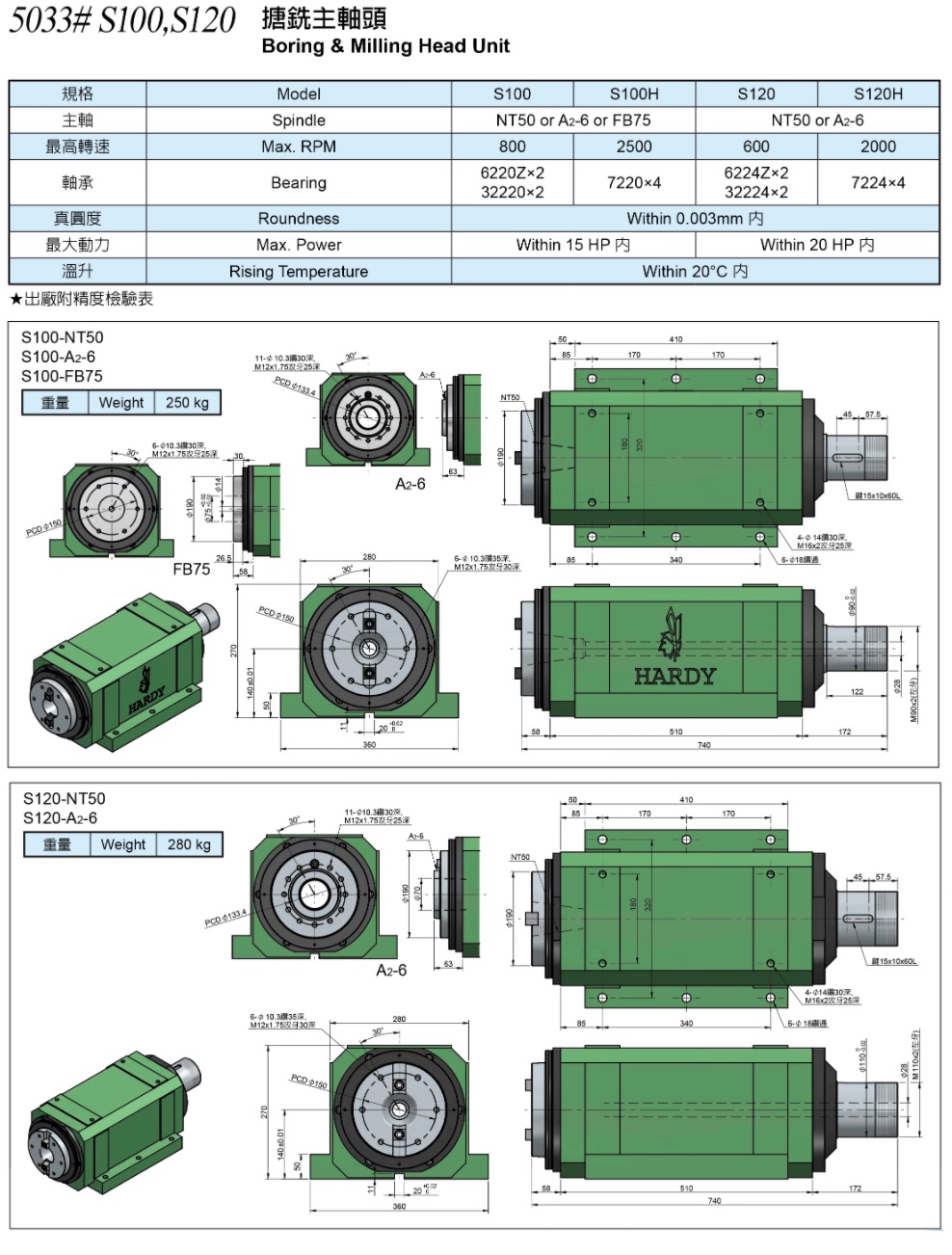

Boring Milling Spindle Head
S120
S120主軸使用德國SKF或日本NSK軸承，精度保持0.003mm內，搪銑主軸頭最高轉速2000，適合搭配伺服滑台或油壓滑台，提升加工效率！
Specification
． Standard 3-phase AC motor 12kW is included, optional maximum power up to 30kW
． Belt driven at fixed speed and incorporate a timing belt
． Spindle taper NT50 and A2-6 are available
． Available for servo driven at variable speeds
． AC Induction Motor protection IP 54
． Gearbox motor is available upon request
