Boring Milling Head
Built-in Motor Spindle Head

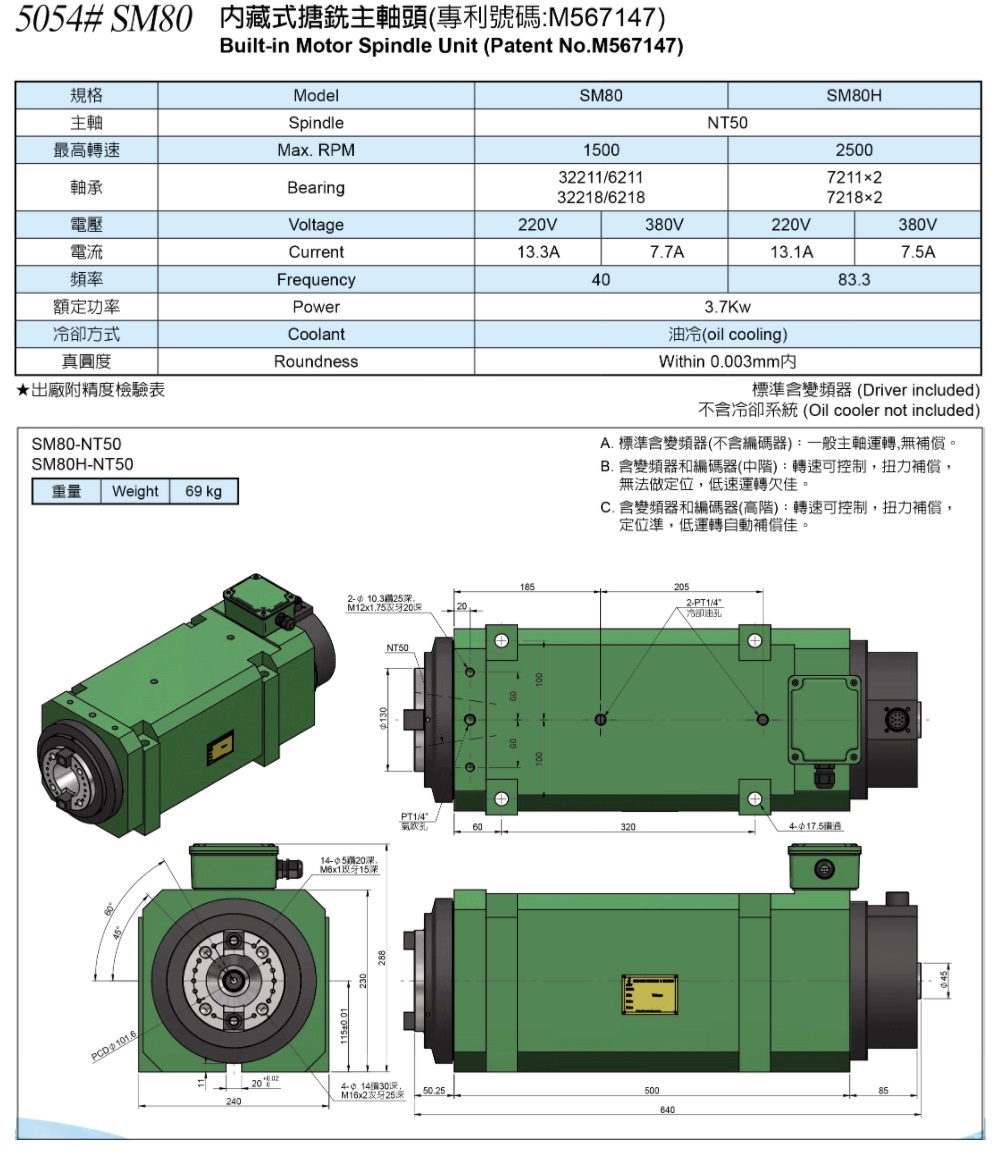

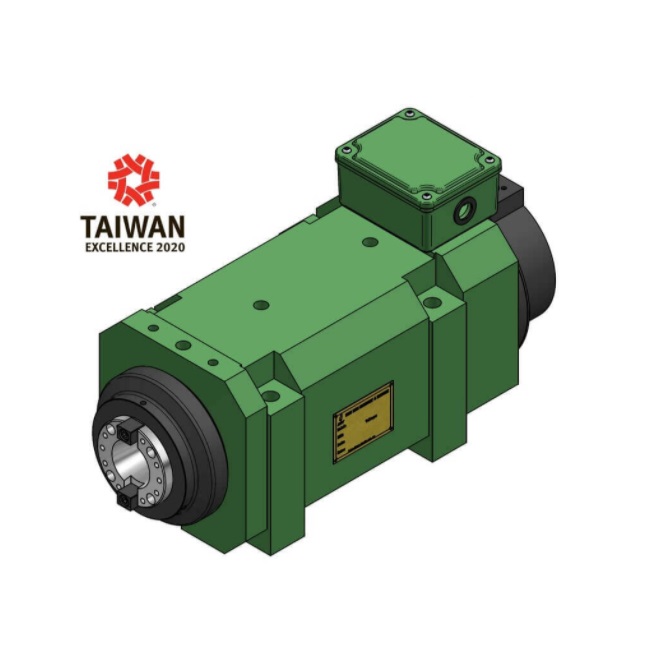

SM80

SM80 Built-in motor spindle is designed for drilling, tapping, boring and milling applications. This product is suitable to install with a servo driven slide for accurate positioning and feeding, saving space requirement and increasing your efficiency and productivity.

Specification

. Servo motor 3.7kW is included
. Spindle taper NT50 is available
. Drive is included
. Encoder is optional

Options (quote on demand)
A. Standard driver (Speed Adjustable/without Torque Compensated)
B. Intermediate driver and encoder (Speed Adjustable/Torque Compensated/Ordinary Orientation at low RPM)
C. Advance driver and encoder (Speed Adjustable/Torque Compensated/Excellent Orientation at low RPM)
