Products

Tapping Spindle
Tapping Spindle - Flange Type

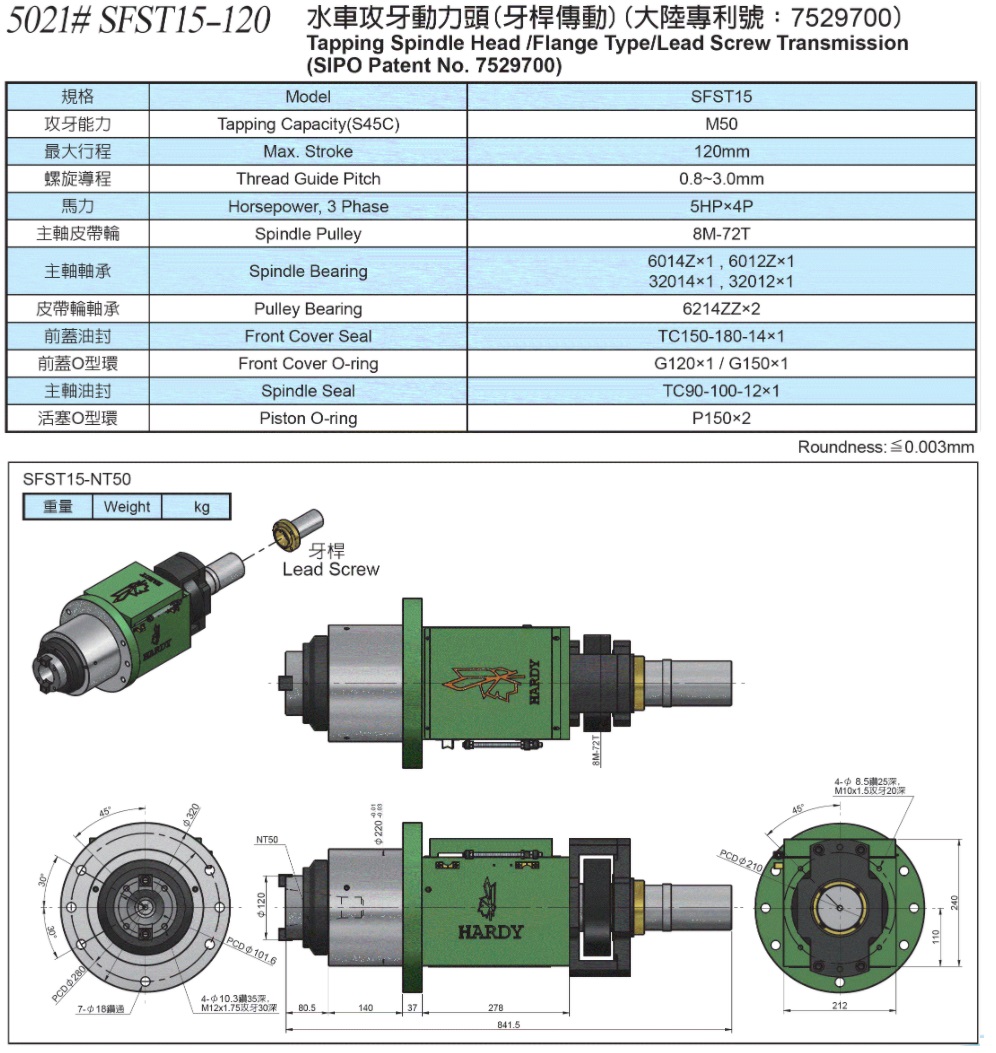

SFST15

SFST15 tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M50 (S45C).

Specification

. Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW
. Belt driven at fixed speed and incorporate a timing or V belt
. Spindle taper NT50 is available
. Available for servo driven at variable speeds
. OMRON proximity switch sensors and stand are furnished
. AC Induction Motor protection IP 54
. Gearbox motor is available upon request
