Tapping Spindle
Tapping Head

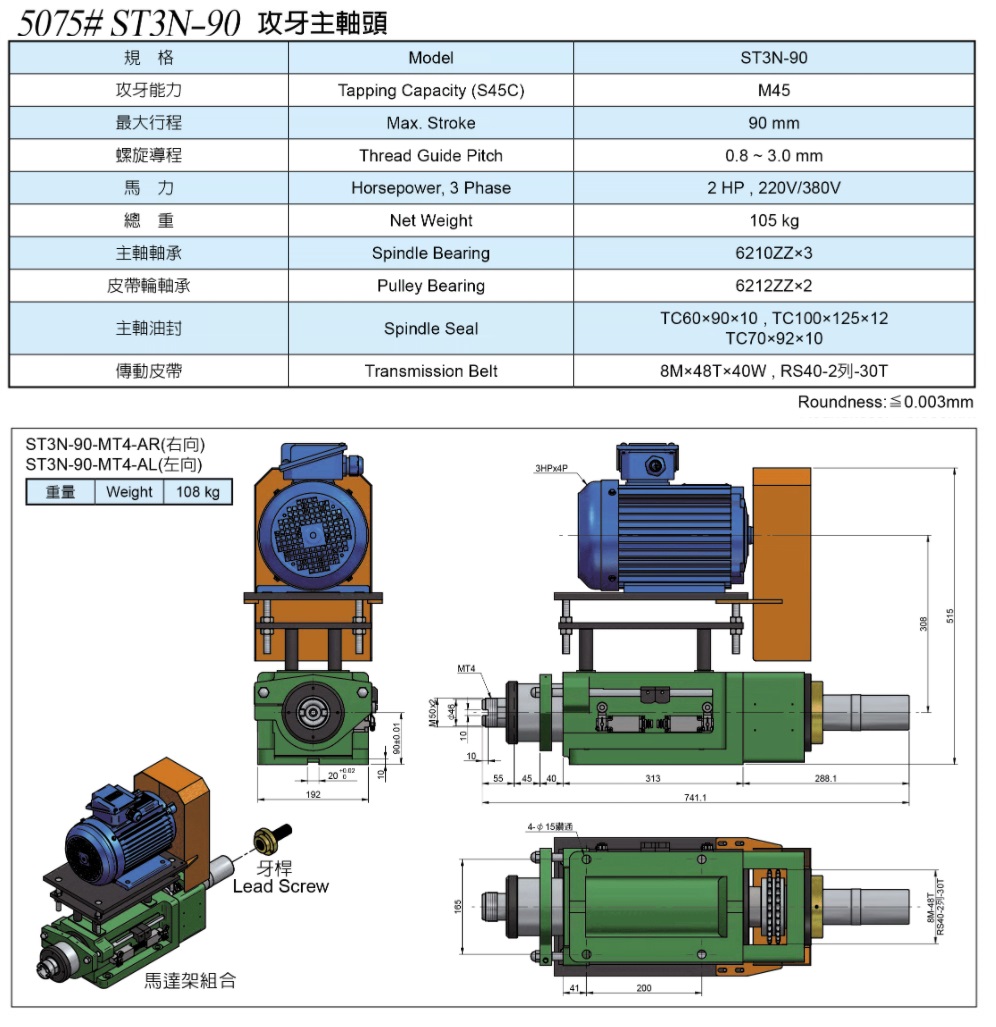

ST3N
ST3N tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M45 (S45C).
Specification
． Standard 3-phase AC motor 2.2kW is included, optional maximum power up to 3.7kW
． Belt driven at fixed speed and incorporate a timing or V belt
． Spindle taper MT4, NT40, FB25 and AS36 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
． Gearbox motor is available upon request
