Milling Head Units

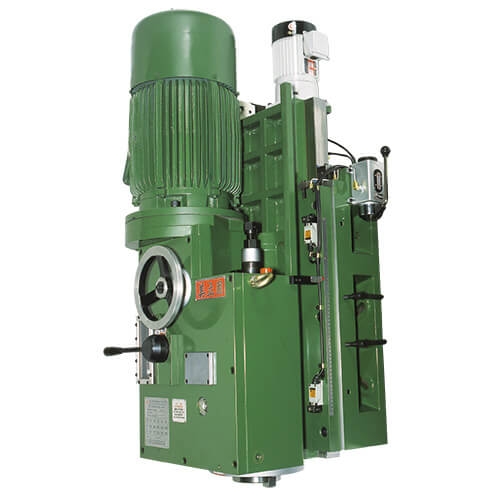

ML-02
ML-02
【Option】
●Pneumatic Tool Lock
●CL-06, CL-09, With 3/ AC motor for feeding device
●Ball Screw
●Air Balancer
●Max. Cutter Dia. Can be up to 315 mm
Specification
| Spindle Motor | 20 HP x 4P | |
| Spindle Taper | NT-50# | |
| Spindle End O.D. | ф128.57 | |
| Spindle Speed | H/L | |
| Spindle Speed (With Inverter Option) |
50C/S (Low gear ratios) | H → 600, L → 210 |
| 50C/S (High gear ratios) | H → 900, L → 320 | |
| Max. Cutter Dia. | 250 mm | |
| Work Travel | 480 mm | |
| AC Motor | 3/4 HP x 1/25 | |
| Rapid Speed | 540 mm/min | |
| Hand Wheel | 2 mm/rev | |
| Weight | 840 kg | |
