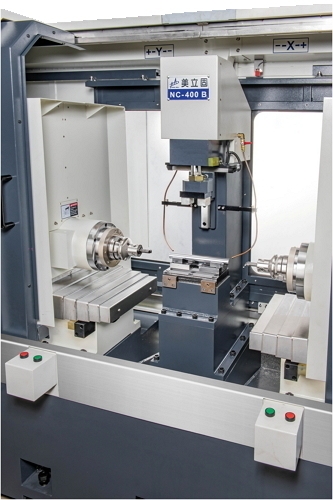

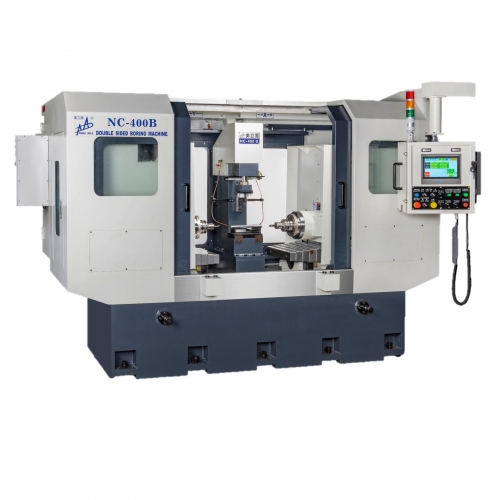

NC-400B is a specially designed machine for machining the round tube workpiece. NC-400B can bore both sides of the workpiece at the same time by using the powerful boring heads and the automatic operation process is the most advantage of this machine.
STANDARD FEATURES
One-piece rigid construction machine base.
Cutting spindle (BT50) X and Y-axis.
Spindle guides are TURCITE-B coated and precision scraped.
2 axes control, X and Y (L and R cutting spindle)。
Vertical clamp hydraulic cylinder system for W-axis.
Vertical clamping jig.
Hydraulic system.
Pneumatic system.
Cutting fluid system.
3 colors working condition light.
LED work light.
Toolbox with tools.
MITSUBISHI PLC system.
Pneumatic front Door.
Cutting fluid and Iron filings filtering container with the pump system.
Manual Pulse Generator (MPG).
Electric cabinet with air cooling system.
Horizontal Boring Machine | ||
MODEL NO. | NC-400B | |
Machining capacity | Length of workpiece | 100 ~ 415 mm |
Diameter of round tube | ф25 mm | |
Travel & table | Travel of head X/Y-axis | 180 mm |
Feed speed | Rapid feed speed X/Y-axis | 15 m/min |
Cutting feed speed manual | 1 – 1500 mm/min | |
Spindle | Spindle | BT50 equivalent |
Spindle speed | 3000 RPM | |
Vertical clamping | Vertical clamp hydraulic cylinder | ф 80 × 80 mm |
Motor | Spindle motor output | 5.2 kW |
Feed motor X,Y axes | 1.5 kW | |
Control system | MITSUBISHI PLC | |
Others | Voltage | 220 V (Transformer) |
Machine weight | 5 tons | |
Machine size W x L x H (mm) | 3440 x 2290 x 2220 |
