Products

Milling Head Units

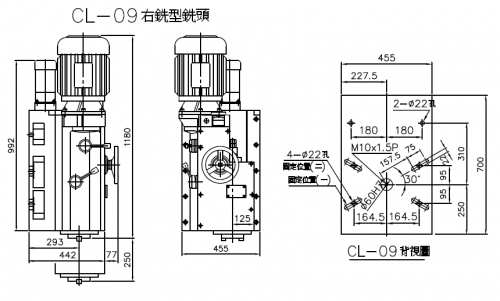

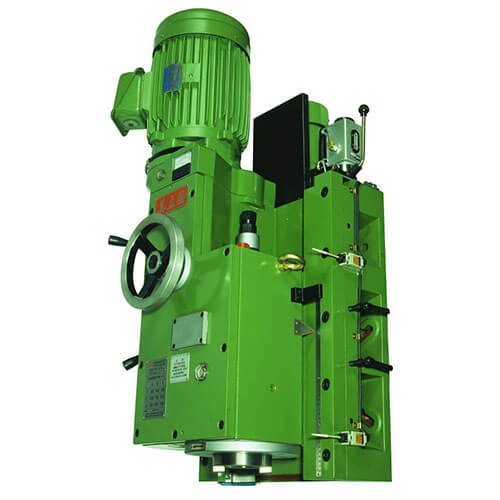

CL-09
CL-09

【Option】
●Pneumatic Tool Lock
●CL-06, CL-09, With 3/ AC motor for feeding device
●Ball Screw
●Air Balancer
●Max. Cutter Dia. Can be up to 315 mm


Specification

Spindle Motor 15 HP x 4P
Spindle Taper NT-50#
Spindle End O.D. ф128.57
Spindle Speed 9 step
Spindle Speed (RPM) 50 HZ 66.83.116.166.216.291.375.493.662
60 HZ 80.100.140.200.260.350.450.592.795
Max. Cutter Dia. 200 mm
Work Travel 380 mm
AC Motor 1/4 HP x 1/25
Rapid Speed 360 mm/min
Hand Wheel 2 mm/rev
Weight 530 kg
