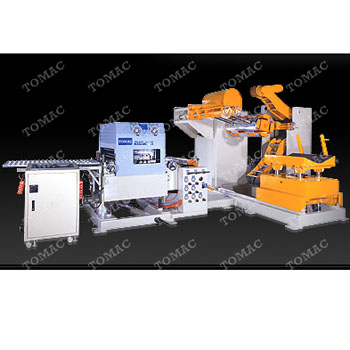

3 in 1 Servo Straightener Feeder w/Uncoiler
TLF3 Series

Specification

Specification

Item

TLF3-700

TLF3-800

TLF3-900

TLF3-1000

TLF3-1100

TLF3-1200

TLF3-1300

TLF3-1400

TLF3-1500

TLF3-1600

Width of Material (mm)

75 ~ 700

75 ~ 800

75 ~ 900

75 ~ 1000

75 ~ 1100

75 ~ 1200

75 ~ 1300

75 ~ 1400

75 ~ 1500

75 ~ 1600

Thickness of Material (mm)

0.5 ~ 3.2

Max. Coil Weight (kg)

5000 (7000,10000* )

Coil I.D. (mm)

508

Max. Coil O.D. (mm)

1500

Max. Speed (m/min)

16

Feed Pitch Accuracy (mm)

±0.15(Within 500mm feedlength)

Feed Roll

Upper 1 / Lower 1

Work Roll

upper 4 / lower 3 (All drive function)

Backup Roll

Provided

Power Supply

220VAC 60HZ

Air Supply

5 kg/cm

Uncoiler Expansion

Hydraulic

Main Motor (kw)

AC 7.0

AC 11.0

Uncoil Motor (kw)

AC2.2

Feed Level (mm)

Customer request ±100

*Means option.



Straightening Performance

Model / Width / Thickness

0.3

0.6

0.8

1.0

1.2

1.4

1.6

1.8

2.0

2.3

2.8

3.2

TLF3- 700

700



TLF3- 800

800

650

TLF3- 900

900

570

400

TLF3- 1000

1000

610

380

280

TLF3- 1100

1100

600

420

270

210

TLF3- 1200

1200

550

430

310

210

160

TLF3- 1300

1300

780

540

410

330

250

165

130

TLF3- 1400

1400

850

600

450

340

270

200

130

100

TLF3- 1500

1500

1000

700

450

350

280

220

160

110

90

TLF3- 1600

1600

1400

800

520

380

300

230

180

130

90

70

※The above figures are for the material having tensile strength 400 N/mm2. Yield strength 275 N/mm2.

Standard Accessories

1.Electric eye loop control system
2.Feed and straightener rolls hard chrome plated
3.Motor Power arm hold down device
4.Feeding line easily adjusted by advance worm gear screw jacks device
5.Uncoiler with inverter control
6.Reference indicator adjuster
7.Threading tables device
8.Coil tip flattener
9.Uncoiler with air disc brake
10.Straightener open device
11.Coil side guide
