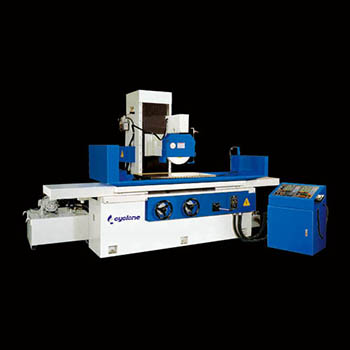

G-D4080AH:
‧Table longitudinal travel by sensor & solenoid valve
‧Continuous lubrication is a standard accessory
G-DL3060AH / G-DS3060AH:
‧Table longitudinal travel by sensor & solenoid value
‧Continuous lubrication is a standard accessory
‧Auto crossing stroke adjustment
‧Back water splash shield
Above the 50100AHR Series are equipped with auto. cross feed, longitudinal (hydraulic), vertical axis driven by AC servomotor and operated by MPG. The AD5, can be added to become 3-axes fully automated thereby making operation more convenient
| Model | G-1545M G-2045M |
G-1545H/AH G-2045H/AH |
G-2550M | G-2550HG-2550AH | G-CS3060AH G-CL3060AH |
| Working surface of table (mm) | 150 x 450 (for C1545) 200 x 450 (for C2045) |
250 x 500 | 300 x 600 | ||
| Max. table travel (mm) |
185 x 500 (for C1545) |
270 x 550 | 340 x 700 | ||
| Max. surface ground (mm) |
150 x 450 (for C1545) |
250 x 500 | 300 x 600 | ||
| Max. distance center of spindle to table |
450 mm | 500 mm | 500 mm (Option:600 mm) |
||
| Table speed | Manual | 5-25 M/min | Manual | 5-25 M/min | 5-25 M/min |
| Table guide way | Ball rolling way | V & Flat way | Ball rolling way | V & Flat way | V & Flat way |
| Auto. Cross feed increment (Approx.) |
Manual |
Manual (for H) |
Manual |
Manual (for H) |
0.1-20 mm |
| Rapid power cross feed (mm/min)(Approx.) |
Manual | Manual(for H) 1100(60Hz) 900(50Hz) |
Manual | Manual(for H) 1100(60Hz) 900(50Hz) |
1100 mm/min (60 Hz) |
| Cross feed 1(rev) on hand wheel 1 (gra) |
5 mm 0.02 mm |
5 mm0.02 mm | |||
| Rapid power head elevation 60 Hz (Approx.)(Option) 50 Hz |
550 mm/min (60 Hz)/ 450 mm/min (50 Hz) |
||||
| Vertical feed 1 (rev) on hand wheel 1 (gra) |
2 mm 0.01 mm(0.0002")(standard)/ 0.005 mm(0.0001")(with AD5) |
2 mm |
|||
| Vertical feed 1 (rev) with M.P.G. 1 (gra) |
--- | ||||
| Auto. down feed (Option) | 0.001-0.999 mm/ Time (0.0001"-0.0999" / Time) |
0.001 mm - 0.999 mm/ Time (Option) |
|||
| Wheel speed 60 / 50 Hz | 3500 R.P.M. (60 Hz)/ 2900 R.P.M. (50 Hz) |
1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz) | |||
| Wheel dimension | 180 x 13 x 31.75 mm (max. 200 x 20 x 31.75) (7" x 0.5" x 1.25") (max. 8" x 0.75" x 1.25") |
S:180 x 13 x 31.75 mm |
|||
| Spindle motor | 2 HP | 2 HP (CS type) / 5 HP (CL type) |
|||
| Hydraulic pump motor | None | 1 HP | None | 1 HP | 1 HP |
| Auto. cross feed motor | None | 25 W | None | 1/5 HP | 1/5 HP |
| Rapid head elevation motor | 1/5 HP (Optional) | 1/5 HP (Option) | |||
| Coolant pump | 1/8 HP (Optional) | 1/8 HP (Option) | |||
| Sound pressure level | below 78 dB (A) | below 78 dB (A) | |||
| Machine net weight (kgs) | 870 / 920 | 950 / 1150 | 1200 | 1350 | 1700 (3740 Lbs) |
| Packing gross weight (kgs) | 970 / 1020 | 900 / 1100 | 1400 | 1550 | 1950 (4290 Lbs) |
| Machine floor space (mm) | 1600 x 1100 | 2080 x 1200 | 2250 x 1450 | 2450 x 1450 | 2600 x 1800 |
| Packing dimensions (LxWxH)(cm) | 182 x 128 x 195 | 212 x 146 x195 | 212 x 146 x200 | 212 x 146 x 200 | 228 x 179 x 210 |
| -L&W Machine Tools, Inc. reserves the right to alter any mechanical specification without prior notice in the interests of product development. | |||||
| Model | G-DS3060AH G-DL3060AH |
G-D4080AH | G-50100AHR G-60100AHR G-70100AHR |
G-50150AHR G-60150AHR G-70150AHR |
G-50200AHR G-60200AHR G-70200AHR |
| Working surface of table (mm) | 300 x 600 | 400 x 800 | 500 x 1020 600 x 1020 700 x 1020 |
500 x 1520 |
500 x 2020 |
| Max. table travel (mm) | 340 x 700 | 450 x 860 | 560 x 1150 660 x 1150 760 x 1150 |
560 x 1650 |
560 x 2150 |
| Max. surface ground (mm) | 300 x 600 | 400 x 800 |
500 x 1020 |
500 x 1520 |
500 x 2020 |
| Max. distance center of spindle to table |
500 mm (Option:600 mm) |
550 mm | 600 mm (Option:800 & 1000 mm) | ||
| Table speed | 5-25 M/min | ||||
| Table guide way | V & Flat way | ||||
| Auto. Cross feed increment (Approx.) |
0.1-20 mm | ||||
| Rapid power cross feed (mm/min)(Approx.) |
1100 mm/min (60 Hz) |
||||
| Cross feed 1(rev) on hand wheel 1 (gra) |
5 mm0.02 mm | ||||
| Rapid power head elevation 60 Hz (Approx.)(Option) 50 Hz |
550 mm/min (60 Hz) |
260 mm/min |
210 mm/min (60 Hz) |
||
| Vertical feed 1 (rev) on hand wheel 1 (gra) |
2 mm |
2 mm |
--- | ||
| Vertical feed 1 (rev) with M.P.G. 1 (gra) |
--- |
(x1) 0.1 mm (0.01") (x5) 0.5 mm (x10) 1 mm |
|||
| Auto. down feed (Option) | 0.001 mm - 0.999 mm/Time (Option) | ||||
| Wheel speed 60 / 50 Hz | 1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz) | ||||
| Wheel dimension |
S:180 x 13 x 31.75 mm |
406 x 50 x 127 mm | 406 x 50 x 127 mm | ||
| Spindle motor | 2 HP (CS type) / 5 HP (CL type) | 5 HP | 10HP / 15 HP (Option) | ||
| Hydraulic pump motor | 1 HP | 2 HP | 3 HP | 5 HP | |
| Auto. cross feed motor | c | ||||
| Rapid head elevation motor | 1/5 HP (Option) | 1 KW AC servo motor | |||
| Coolant pump | 1/8 HP (Option) | 1/8 HP | |||
| Sound pressure level | below 78 dB (A) | ||||
| Machine net weight (kgs) | 1700 (3740 Lbs) | 3250 |
6000 |
7200 |
8400 |
| Packing gross weight (kgs) | 1950 (4290 Lbs) | 3500 |
6800 |
8100 |
9400 |
| Machine floor space (mm) | 2600 x 1800 | 3450 x 2000 | 4600 x 2300 x 2200 |
5150 x 2300 x 2200 |
6150 x 2300 x 2200 |
| Packing dimensions (LxWxH)(cm) | 228 x 179 x 210 | 276 x 228 x 215 | 376 x 228 x 228 | 391 x 228 x 228 | 477 x 228 x 228 |
| -M Series: 3 axes are manual H Series: Longitudinal (hydraulic) and cross feed / vertical axes are manual AH Series: Auto. Cross feed, longitudinal (hydraulic) and vertical axis are manual AHR Series: Auto. Cross feed, longitudinal (hydraulic) and vertical axis travel are with AC servomotor. |
|||||
