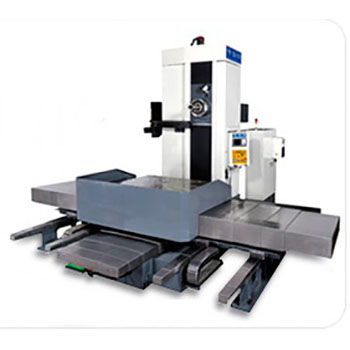

Specifications \ Model |
Unit |
CBA-110R |
CBA-110R2 |
CBA-110R3 |
||
Spindle |
Main motor (30min/Cont) |
kw |
18/22 |
|||
Spindle speed |
rpm |
5-2500 |
||||
Spindle taper |
|
ISO 50 / BT-50 |
||||
Spindle diameter |
mm |
110 |
||||
Spindle end diameter |
mm |
215 |
||||
Spindle Max. torque |
Nm |
1245 |
||||
Spindle Max. thrust |
N |
19600 |
||||
Travel |
X axis (Table cross travel) |
mm |
1500 |
2000 |
3000 |
|
Y axis (Spindle vertical travel) |
mm |
1500 |
1800 |
2000 |
||
Z axis (Table vertical travel) |
mm |
1100 |
1300 |
1500 |
||
W axis (Spindle travel) |
mm |
600 |
||||
Rotary working table |
Table size |
mm |
1250x1400 |
1400x1600 |
1600x1800 |
|
T-Slot |
mmxNo. |
22x7 |
22x7 |
22x9 |
||
Max. loading weight |
kg |
6500 |
8500 |
10000 |
||
Index |
rpm |
0.001° |
0.001° |
0.001° |
||
Max. rotating dia. |
mm |
1877 |
2126 |
2408 |
||
Rapid rotation of table |
rpm |
0.8 |
0.8 |
0.8 |
||
Max. Thrust |
N |
6480 |
6480 |
6480 |
||
Feed |
Rapid |
XYZW axis |
mm/min |
XYZ axis=10000 / W axis=3000 |
||
Feed rate |
X / Y axis |
mm/min |
1-5000 |
|||
Z / W axis |
mm/min |
1-5000 |
||||
Power Capacity |
KVA |
65 |
65 |
65 |
||
Machine Size(L×W×H) |
mm |
4650x6200x3800 |
5230x6280x4100 |
6230x6510x4300 |
||
Machine Weight |
Kg |
22800 |
24000 |
26000 |
||
Controller |
|
Fanuc / Siemens / Heidenhain |
