Eagle Eye Series YDH88
Square End Mill 6 Flutes
YDH88E6A
The Eagle Eye series is used for machining of materials between HRC 45-55, and "Miniature End Mills" using the same material. Widely used for a variety of purposes, this sophisticated line features a special ultrafine carbide grade for HSC machining.
Specification

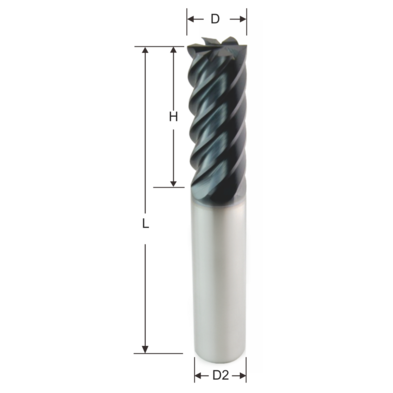

| Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
|---|---|---|---|---|
| 6 Flutes | D | H | L | D2 |
| E6A06050-6.0 | 6 | 16 | 50 | 6 |
| E6A08060-8.0 | 8 | 20 | 60 | 8 |
| E6A10075-10.0 | 10 | 25 | 75 | 10 |
| E6A12075-12.0 | 12 | 30 | 75 | 12 |
| E6A16100-16.0 | 16 | 40 | 100 | 16 |
| E6A20100-20.0 | 20 | 45 | 100 | 20 |
