Leopard Series YDH99
Long Flute Square End Mill 4 Flutes／2Flutes
YDH99EF4A, YDH99EF2A
The Leopard Series is our most advanced product and is used for machining material with a HRC rating between 55-65. Employing special, high-quality coatings, the Leopard Series facilitates remarkable, high-speed cutting and processing of high hardness materials efficiently and accurately.
Specification

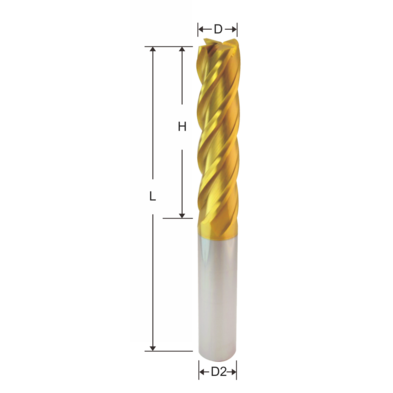

| Type No. | Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
|---|---|---|---|---|---|
| 4 Flute | 2 Flute | D | H | L | D2 |
| EF4A03075-3.0 | EF2A03075-3.0 | 3.0 | 9 | 75 | 3 |
| EF4A04075-3.0 | EF2A04075-3.0 | 3.0 | 9 | 75 | 4 |
| EF4A04075-4.0 | EF2A04075-4.0 | 4.0 | 15 | 75 | 4 |
| EF4A06075-5.0 | EF2A06075-5.0 | 5.0 | 20 | 75 | 6 |
| EF4A06075-6.0 | EF2A06075-6.0 | 6.0 | 25 | 75 | 6 |
| EF4A06100-6.0 | EF2A06100-6.0 | 6.0 | 30 | 100 | 6 |
| EF4A08100-8.0 | EF2A08100-8.0 | 8.0 | 40 | 100 | 8 |
| EF4A10100-10.0 | EF2A10100-10.0 | 10.0 | 45 | 100 | 10 |
| EF4A12100-12.0 | EF2A12100-12.0 | 12.0 | 50 | 100 | 12 |
| EF4A16150-16.0 | EF2A16150-16.0 | 16.0 | 75 | 150 | 16 |
| EF4A20150-20.0 | EF2A20150-20.0 | 20.0 | 80 | 150 | 20 |
