Hummingbird Series YDS33
NC Spot Drill 90°,120°
YDS33SD2A,YDS33SD2B
The Hummingbird Series is designed on the basis of processing aluminum. It brings you a smooth chip removal and high performance with optimum surface finish.
Specification

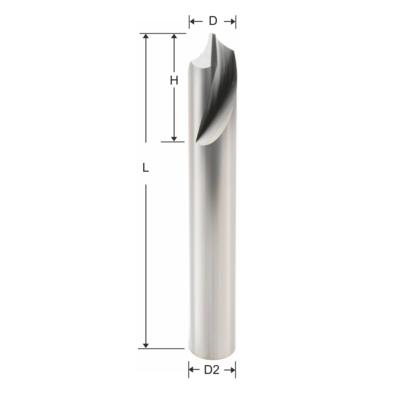

Type No. | Type No. | Diameter | Flute Length | Overall Length | Shank Dia |
---|---|---|---|---|---|
90° | 120° | D | H | L | D2 |
SD2A03050-3.0 | SD2B03050-3.0 | 3 | 6 | 50 | 3 |
SD2A04050-4.0 | SD2B04050-4.0 | 4 | 8 | 50 | 4 |
SD2A04075-4.0 | SD2B04075-4.0 | 4 | 8 | 75 | 4 |
SD2A06050-6.0 | SD2B06050-6.0 | 6 | 12 | 50 | 6 |
SD2A06075-6.0 | SD2B06075-6.0 | 6 | 12 | 75 | 6 |
SD2A08060-8.0 | SD2B08060-8.0 | 8 | 16 | 60 | 8 |
SD2A08100-8.0 | SD2B08100-8.0 | 8 | 16 | 100 | 8 |
SD2A10075-10.0 | SD2B10075-10.0 | 10 | 20 | 75 | 10 |
SD2A10100-10.0 | SD2B10100-10.0 | 10 | 20 | 100 | 10 |
SD2A10150-10.0 | SD2B10150-10.0 | 10 | 20 | 150 | 10 |
SD2A12075-12.0 | SD2B12075-12.0 | 12 | 24 | 75 | 12 |
SD2A12100-12.0 | SD2B12100-12.0 | 12 | 24 | 100 | 12 |
SD2A12150-12.0 | SD2B12150-12.0 | 12 | 24 | 150 | 12 |
SD2A16100-16.0 | SD2B16100-16.0 | 16 | 30 | 100 | 16 |
SD2A16150-16.0 | SD2B16150-16.0 | 16 | 30 | 150 | 16 |
SD2A20100-20.0 | SD2B20100-20.0 | 20 | 30 | 100 | 20 |
SD2A20150-20.0 | SD2B20150-20.0 | 20 | 30 | 150 | 20 |
