Leopard Series YDH99
Square End Mill 4Flutes/2Flutes
YDH99E4A, YDH99E2A, YDH99E4B, YDH99E2B

The Leopard Series is our most advanced product and is used for machining material with a HRC rating between 55-65. Employing special, high-quality coatings, the Leopard Series facilitates remarkable, high-speed cutting and processing of high hardness materials efficiently and accurately.

Specification

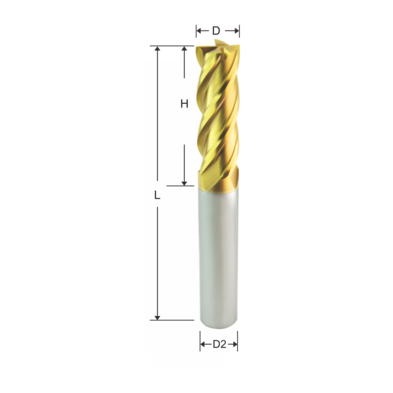

Type No. Type No. Diameter Flute Length Overall Length Shank Dia
4 Flute 2 Flute D H L D2
E4A04050-1.0 E2A04050-1.0 1.0 3 50 4
E4A04050-1.5 E2A04050-1.5 1.5 4 50 4
E4A04050-2.0 E2A04050-2.0 2.0 5 50 4
E4A04050-2.5 E2A04050-2.5 2.5 7 50 4
E4A03050-3.0 E2A03050-3.0 3.0 9 50 3
E4A04050-3.0 E2A04050-3.0 3.0 9 50 4
E4A04050-4.0 E2A04050-4.0 4.0 11 50 4
E4A06050-3.0 E2A06050-3.0 3.0 9 50 6
E4A06050-4.0 E2A06050-4.0 4.0 11 50 6
E4A06050-5.0 E2A06050-5.0 5.0 13 50 6
E4A06050-6.0 E2A06050-6.0 6.0 16 50 6
E4A08060-7.0 E2A08060-7.0 7.0 18 60 8
E4A08060-8.0 E2A08060-8.0 8.0 20 60 8
E4A10075-9.0 E2A10075-9.0 9.0 23 75 10
E4A10075-10.0 E2A10075-10.0 10.0 25 75 10
E4A12075-12.0 E2A12075-12.0 12.0 30 75 12
E4A16100-13.0 E2A16100-13.0 13.0 35 100 16
E4A16100-14.0 E2A16100-14.0 14.0 35 100 16
E4A16100-15.0 E2A16100-15.0 15.0 38 100 16
E4A16100-16.0 E2A1610-16.0 16.0 40 100 16
E4A20100-18.0 E2A20100-18.0 18.0 40 100 20
E4A20100-20.0 E2A20100-20.0 20.0 45 100 20
E4A25100-22.0 E2A25100-22.0 22.0 45 100 25
E4A25100-25.0 E2A25100-25.0 25.0 45 100 25
