Drilling & Milling Machine

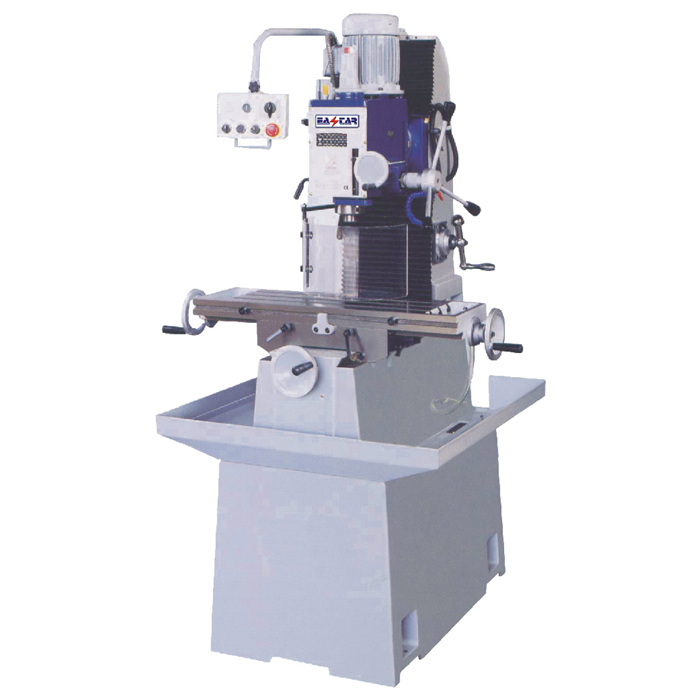

MILLING & DRILLING M/C All geared type head
GEM-500GIII

Specification

WORKING TABLE

Table surface : 240 x 820mm

Travel range (X x Y x Z) : 500 x 350 x 460mm

MAIN SPINDLE

Spindle nose : MT#3 or R-8

Quill dia. : φ75mm

Spindle speeds        : 50-2500rpm (50HZ)     60-3000rpm (60HZ)

Quill travel : 120mm

Spindle nose to table : 100-460mm

Spindle center to column surface : 275mm

Vert. head swivelling angel ( L & R) : ±90°

MOTORS

Spindle power : 1.5HP

Z axis rapid feed : 1/4HP gear motor (OPT.)

Coolant pump motor        : 1/8HP (OPT.)

Measurement : 1050 x 980 x 1875mm

N.W./G.W. : 700/760KGS



Standard Accessories

Drawbar

Z axis manual memory feed

1.5HP two speeds motor

 (12 steps)

Levelling base

Tool box & tools



Optional Accessories

Table power feed

6" swivel milling vise

52 pcs clamping kits

5 pcs collet chucks

7 pcs collet chucks

Drill chucks (13 mm)

NT#30 spindle nose

Z axis Up & Down Gear Motor (1/4HP)

CE standard (Control box & control panel)

Tapping function

Cooling system

Hand oiler Equipped for X, Y, Z slide ways

Hardened & ground ways for Y, Z axis

Harden & ground table surface

Saddle coated with Trucite-B on X, Y, Z

Single phase motor
