Metal cutting Machinery,Hack sawing Machine

1.Hydraulic Hack saw

2.Cutting capacity in round : 280mm in square : 280x250mm

3. Max. cutting degree : 45° /130

4. Distance of stroke : 140mm

5. Blade size : 450x32x1.6x8.3mm

6. Main Motor : 2HP , 4P

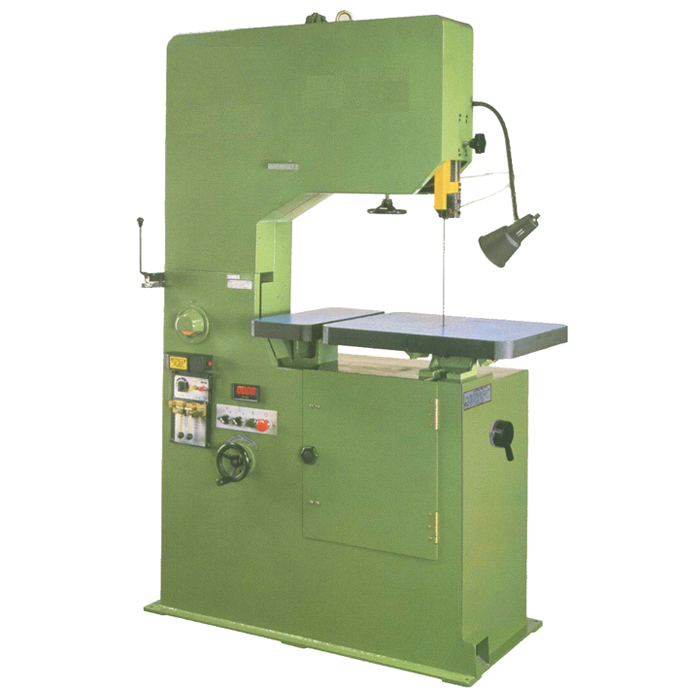

Specification

Cutting Capacity

--- Blade to colum : 610 mm

--- max. work height : 340 mm

Table size : 600x500 mm / 220x500 mm

Table inclination (4ways) : 15 mm

Saw blade length : 3970 mm

Saw blade width : 3-16 mm

Saw blade speeds(m/min(fpm)) : Low :20-85m/min (65-280fpm) ; High: 120-500m/min (400-1640fpm)

Butt welder capacity : 2.4KVA 3-16mm

Drive motor : 2HP(1.5)

Net weight (approx.) : 700 Kgs

Gross weight (approx.) : 820 Kgs

Measurement (LxWxH) : 1420x760x2140 mm

Standard Accessories

* Saw blade butt welder with integrated annealing unit.

* Blade shear, grinder.

* Built-in blaole and tire cleaning brush.

* Low voltage working lamp.

* One set of required tools.

* One instruction and parts manual.

Optional Accessories

* Rip Fence for straight, repeated cuttings easily removable for varied size.

* Mitre Protractor for angular cutting.

* Groove Table.
