Products

Drilling Machines
Auto. Drill

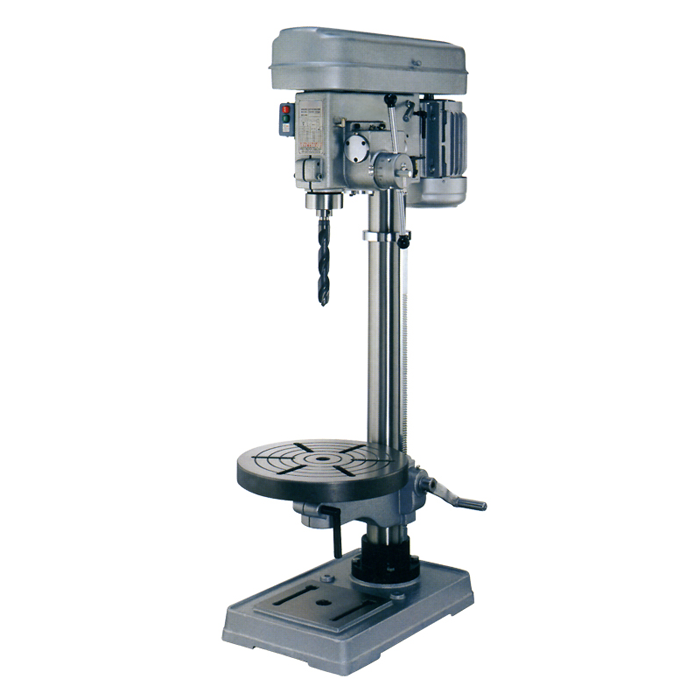

KSA-25B

* When the automatic or semi-automatic drilling is equipped with coolant tank (Refer to KS-3M coolant tank), one operator can operate several



drilling machines. It provides effortless operation while greatly increasing efficiency.


Specification

A- Diameter of quill : Ø95

B- Spindle taper : MT 3# (MT 4#)

C- Spindle step : 6

D- Spindle travel : 140

E- Spindle to column : 230

F- Spindle to table : 630

G- Spindle to base : 930

H- Drilling capacity : Ø8-Ø25

I- Cover sizes (LxWxH) : 725x262x157

J- Column diameter : Ø102

K- Table diameter : Ø420

L- Base sizes (LxW) : 615x385

M- Speed --- 50Hz : 180-1400

--- 50Hz : 220-1650

N- Motor : 2 HP-6P

O- Machine sizes (LxWxH) : 810x450x1545

P- Machine weight : 210 kg

** For more details please visit our web site at **



https://www.taiwanmachine.com.tw/ProductDesc.asp?Fkindno=F15&SKindno=S26&itemno=I029&PdGpID=2898
