OVER ARM SERIES
OVER ARM SERIES

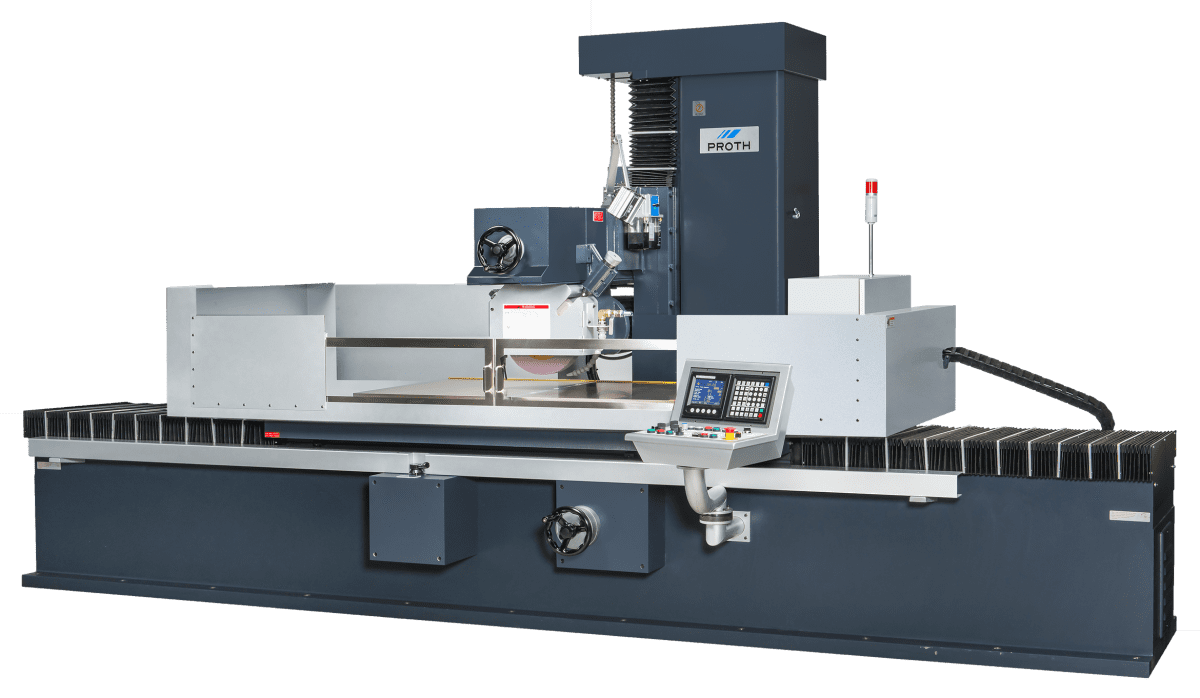

PSGO-60150AHR / PSGO-75150AHR / PSGO-75220AHR / PSGO-75300AH
Table Size / 600x1500mm / 750x(1500-3000)mm
Specification
Product Description
| Longitudinal Slideways | Cross Slideways | Longitudinal Movement | Cross Movement | Vertical Downfeed | Auto Down Feed |
|---|---|---|---|---|---|
| Double Vee Ways | Flat Doveail Type Gibbed Ways | Hydrulic | Automatic | Rapid Up/Down | Optional |
- The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
- Longitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection(except PSGS series).
Product Feature
| SPECIFICATION / MODELS | PSGO | ||||
|---|---|---|---|---|---|
| 60150AHR | 75150AHR | 75220AHR | 75300AHR | ||
| General Capacity | Max. travel (cross x longitudinal) | 660x1650mm | 810x1650mm | 810x2350mm | 810x3150mm |
| Spindle center height from table | 700(950)mm | ||||
| Max height from table top to bottom of standard wheel | |||||
| Grinding surface of table | 600x1500mm | 750x1500mm | 750x2200mm | 750x3000mm | |
| Longitudinal Movement | Hydraulic table speed | 1-25m/min | |||
| Cross Movement | Intermittent cross feed-approx.(Electro-mechanical) | 0.1-15mm/feed | |||
| Continuous cross feed-approx.(Electro-mechanical) | 2000mm/min(50Hz),2400mm/min(60Hz) | ||||
| Hand feed per revolution | 5mm | ||||
| Hand feed per division | 0.02mm | ||||
| Vertical Downfeed | Rapid traverse approx.(option) | 240mm/min | |||
| Hand feed per revolution | 0.25mm | ||||
| Hand feed per division | 0.0025mm | ||||
| Grinding Wheel | Dimension(O.D x W x I.D) | 355x50x127mm | |||
| Spindle speed(50/60Hz) | 1500/1800 r.p.m. | ||||
| Motor | Spindle motor | 7.5(11)kW/10(15)HP | |||
| Hydraulic motor | 5.6kW/7.5HP | ||||
| Weight | Net weight | 9350kg | 11000kg | 12500kg | 14400kg |
| Gross weight | 10800kg | 12300kg | 14000kg | 16000kg | |
| Packing Size | Dimension (L x W x H) (m) | 5.4x2.27x2.8 | 6.92x2.27x2.8 | 7.47x2.27x2.8 | |
Notes:
- Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.
- Machine appearance will change depending upon different optional equipment selected.
- Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.
- Machines are shown with optional equipments.
