ROTARY SERIES
ROTARY SERIES

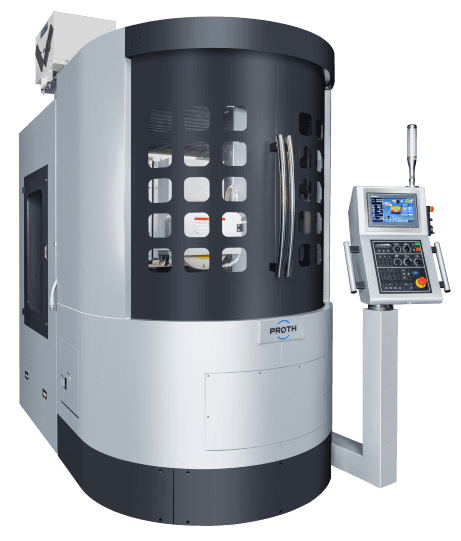

PSRC-500S / 600S / 800S / 1000S

Table Size / 500mm / 600mm

Specification

Product Description

Cross Slideways Cross Movement Vertical Downfeed Auto Down Feed Rotary Table
Double Vee Ways Servo Control Rapid Up/Down AD1 Standard Bearings/Hydrostatic
  • The surfaces of longitudinal table ways are all hand scraped to getting perfect contact pattern and to ensure very high accuracy.
  • ongitudinal table ways are designed to have slide surfaces longer than that of the working surface and equal to the table length to keep the table free from torsion and deflection(except PSGS series).

Product Feature

SPECIFICATION / MODELS PSRC
500S 600S
General Capacity Max. grinding radius 290mm 340mm
Spindle center height from table 500mm
Max. height from table top to bottom of standard wheel 322mm
Table diameter 500mm 600mm
Rotary Table Max. speed 60 r.p.m.
Table motor 1.5kW/2HP
Cross Movement Continuous cross feed 50-1500mm/min
Hand feed per revolution 0.1mm x1/x5/x10
Hand feed per division 0.001mm x1/x5/x10
Vertical Downfeed Rapid traverse approx. (option) 220mm/min
Handwheel per revolution 0.1mm x1/x5/x10
Handwheel per divison 0.001mm x1/x5/x10
Grinding Wheel Dimension (O.D x W x I.D) 355x50x127mm
Spindle speed(50/60Hz) 1500/1800 r.p.m.
Motor Spindle motor 3.7kW/5HP
Weight Net weight 4500KG 5000KG
Gross weight 5500KG 6000KG
Machine Size Dimension(L x W x H) 2.5x1.9x2.5


Notes:

  • Since we subscribe to a process of continuous improvement for our products specifications are subject to change without notice.
  • Machine appearance will change depending upon different optional equipment selected.
  • Equipment marked with () is available at additional extra charge. Other special applications may be provided upon specific requests from customers. Please contact us for more details.
  • Machines are shown with optional equipments.
