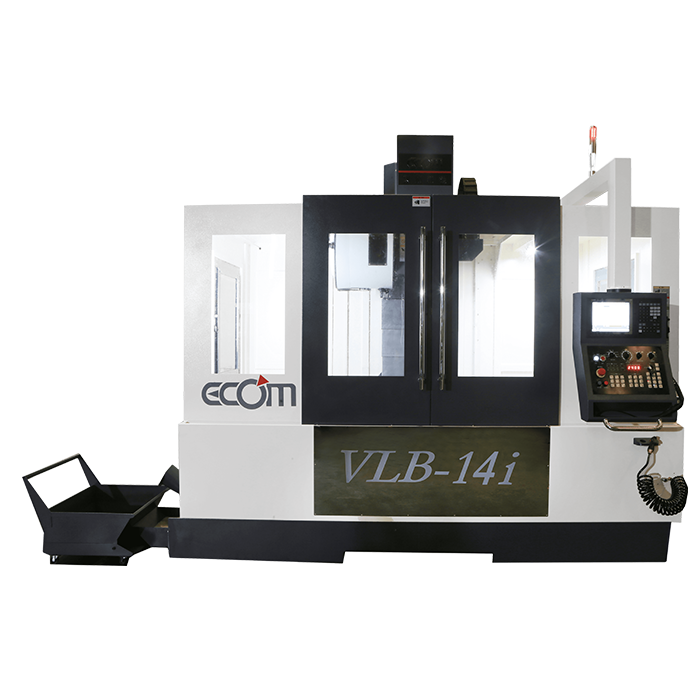

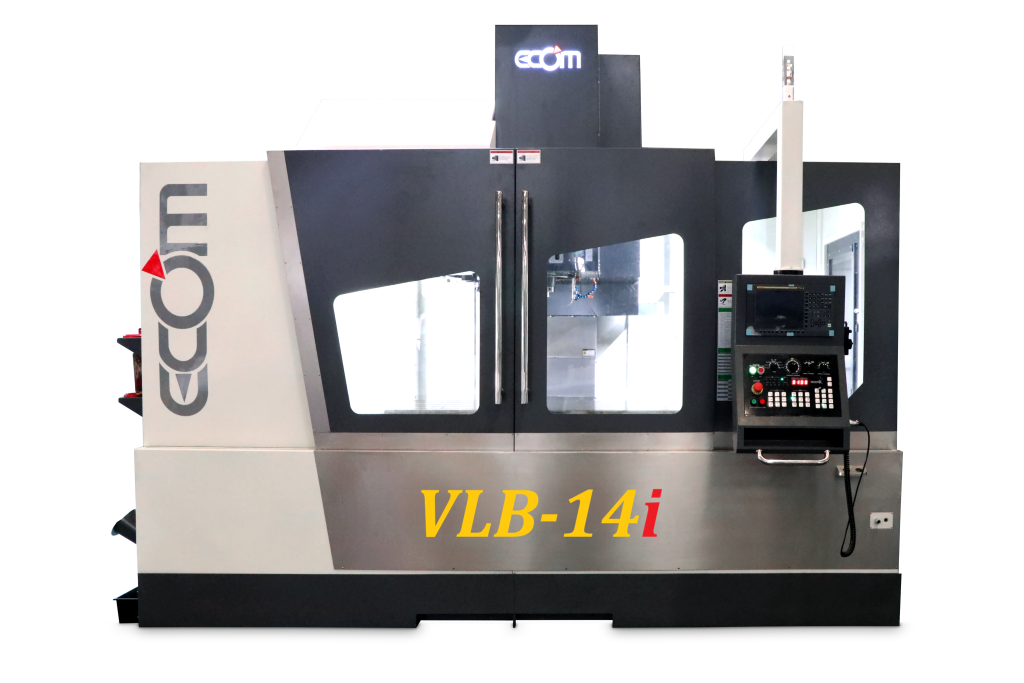

The VLB i Series offers optimum alignment of the motor and gearbox ensures no offset and guarantees steady smooth movement of the headstock along the Z-axis. This design significantly reduces torsion on the headstock and ensures optimum rigidity, long term accuracy, and repeatability. Large diameter pre-tensioned ballscrews have a double-nut preloaded design eliminating the potential thermal growth and promote high accuracy and high-speed positioning.
The X&Y roller linear guideways fully support the machine’s saddle and worktable, delivering outstanding X&Y-axis accuracy over the full travel range of the machine. This is critical during machining heavy workpieces. It can avoid deflection and is a key factor in maintaining part accuracy and precision. The Z sliding surface areas and gibs are coated with Turcite-B and hand-scraped for perfect fit and alignment.
| Travel | X - Axis Travel | 1400mm | |
|---|---|---|---|
| Y - Axis Travel | 750mm | ||
| Z - Axis Travel | 650mm | ||
| pindle Center To Z - Rail | 830mm | ||
| Spindle Nose To Table | 120 - 770mm | ||
| Table | Table Size | 1500 X 750mm | |
| T - Slot (number*width*pitch) | 5*18mm*150mm | ||
| Maximum Table Load | 1500kg | ||
| Spindle | Spindle Taper | BT-50 | |
| Spindle RPM | 50-8000rpm | ||
| Type Of Driving | Belt type(OP: Direct type) | ||
| Feed Rate | X. Y Axis Rapid Feed Rate | 30m/min | |
| Z Axis Rapid Feed Rate | 20m/min | ||
| X. Y. Z Max.Cutting Feed Rate | 10m/min | ||
| Automatic tool changer | Arm Type (Tool to Tool) | 24T (4.5sec) | |
| Max. Tool Diameter*Length(adjacent) | Φ220X350mm(Φ110X350mm) | ||
| Max. Tool Weight | 15 kg | ||
| Motor | MITSUBISHI | FANUC | |
| Spindle Motor | 15/18.5kW | 15/18.5kW | |
| X. Y Axis Servo Motor | 3.0kW | 3.0kW | |
| Z Axis Servo Motor | 4.5kW BS | 3.0kW BS | |
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | |
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | ||
| Others | Approximate Weight | 10500kg | |
| Floor Space Measurement | 4340*3510*3150mm | ||
Above specification are subject to change without prior notice.
