Double-Column Machining Center (Linear)
Double-Column Machining Center DMC-1520
DMC-1520

The structures of major components for DMC machining centers have been designed with the finite element method (FEM). We refine our design and improve product quality.

The ECOM DMC provides stability, and power requiring to deliver super-sized precision for meticulous industries such as aerospace, electronics, and automotive.

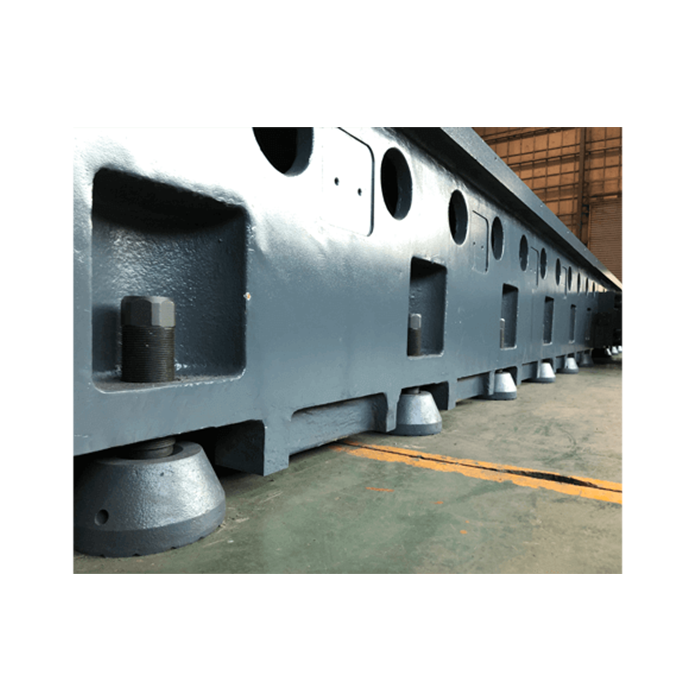

The solid double-column construction ensures greater rigidity and closer tolerances, making this machine well-suited for the efficient machining of general parts and rapid die & mold jobs. ECOM double-column machines deliver repeatedly.

Specification

Specifications
DMC-1520
Travel X - Axis Travel 2000mm
Y - Axis Travel 1500mm
Z - Axis Travel 600mm
Distance between column 1520mm
Working Space 1500 X 2000 X 800mm
Spindle Nose To Table 200-800mm
Table Table Size 1200x2100mm
T - Slot 18x150mmx7T
Maximum Table Load 4000kg
Spindle Spindle taper-D mm BT40-150    /   BT50-155
Type Of Driving Direct Type /   Belt Type
Spindle speed 12000rpm  /    6000rpm
Feed Rate Rapid traverse(X.Y.Z)axis X:15 Y:18 Z:18(m/min)
Cutting feedrate 7000(mm/min)
Type Of Driving X Axis Type Of Driving Direct type drive
Y Axis Type Of Driving Direct type drive
Z Axis Type Of Driving Direct type drive
Automatic tool changer Max.tool length 300mm     /   350mm
Max.tool weight 8kg           /   15kg
Max.tool dia.-(Full tools) Ø78mm   /    Ø110mm
Max.tool dia.-(W/O Adjacent tool) Ø150mm  /   Ø200mm
Motors   0iMF-β 0iMF-β
Spindle Motor 11/18.5kW(52.5Nm) 15/18.5kW(143Nm)
X Axis Servo Motor 3kW(27Nm) 3kW(27Nm)
Y Axis Servo Motor 3kW(27Nm) 3kW(27Nm)
Z Axis Servo Motor 3kW(27Nm)BS 3kW(27Nm)BS
Cutting fluid Capacity(motor) 300L(1000W)
Machine Accuracy Positioning Accuracy (JIS) ±0.005/300;±0.015/Full travel
Repeat Poitioning Accuracy (JIS) ±0.003mm
Others Pneumatic supply ≧ 6.5Kg/c㎡
Floor Space Measurement 5360X4050X3650mm
Machine weight (approximate) 17000KG
