Moving Column Machining Center with APC VD-8iB VL-10i APC

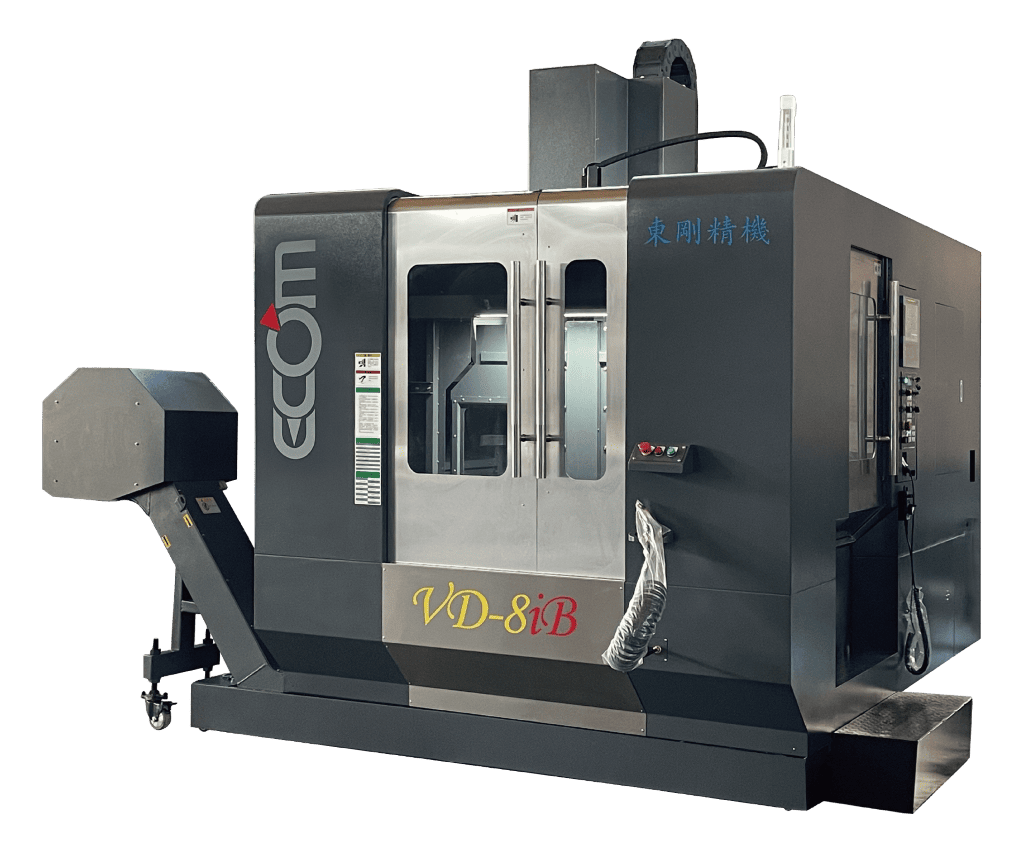

VD-8iB APC

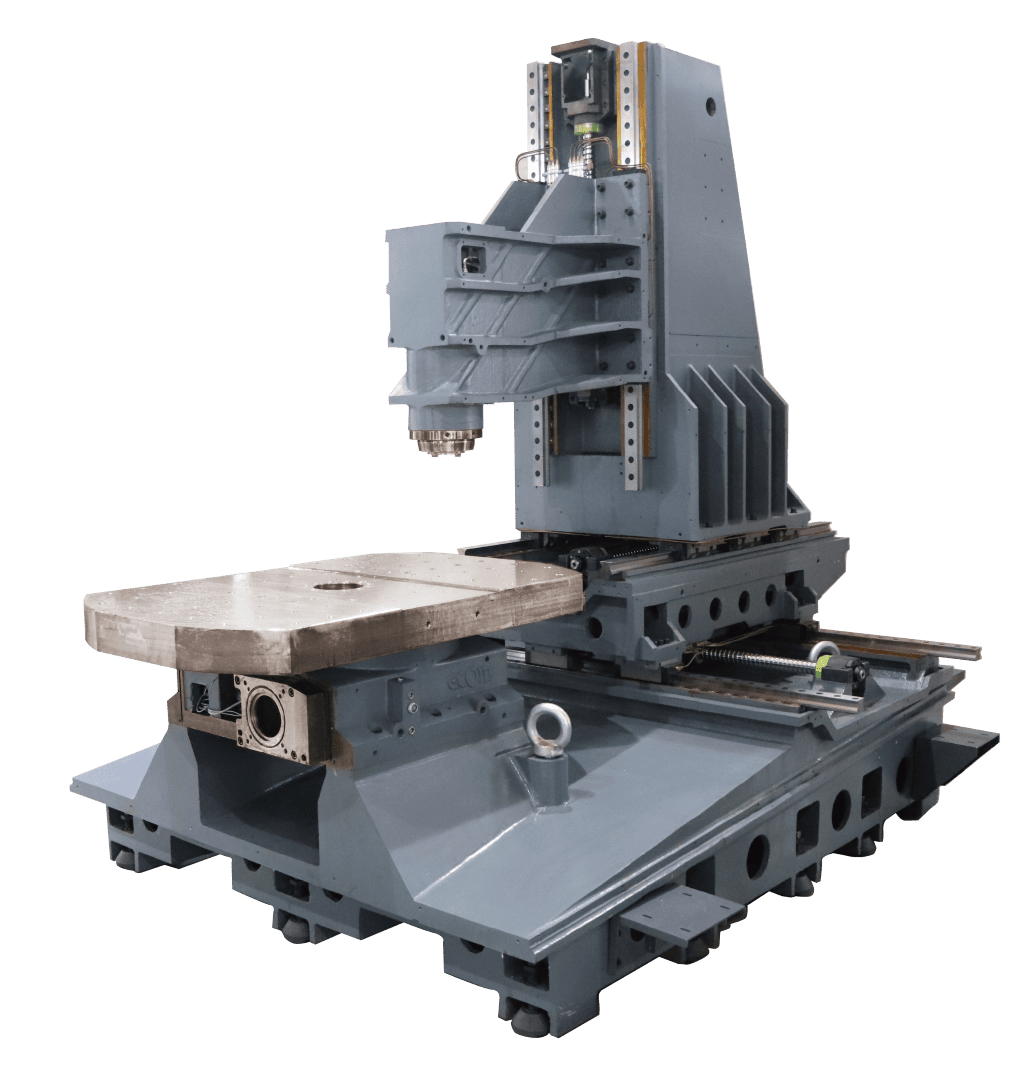

High-Rigidity with Column-Moving Structure - The moving column structure may eliminate the potential causes of fatigue and vibration by high-frequent rapid movements. VD-8iB APC is build for its excellent long-term stability, superlative accuracy, and exemplary ergonomics.
The dual table with the standard automatic indexing pallet is of rack & pinion type and rotates around 180 degrees.
The table with the one-piece horizontal machine bed directly connected would allows stable positioning and minimal non-cutting time to improve productivity
The hydraulic lines for fixtures and electrical cables for rotary tables are within the central column of the indexing pallet
Specification
Specifications
VD-8iB APC
| Travel | X - Axis Travel | 800mm | |
|---|---|---|---|
| Y - Axis Travel | 500mm | ||
| Z - Axis Travel | 560mm | ||
| Spindle Center To Z - Rail | 620mm | ||
| Spindle Nose To Table | 120 - 680mm | ||
| Table | Table Size | 2-800 X 450mm | |
| T - Slot (number*width*pitch) | M16*120mm*100mm | ||
| Maximum Table Load | 300kg X 2 | ||
| Automatic Pallet Changer | The Workbench Number | 2 Pallets | |
| Table Change Time | 6 sec | ||
| Rotary Way | 180° | ||
| Spindle | Spindle Taper | BT-40 | |
| Spindle RPM | 50-12000rpm | ||
| Type Of Driving | Direct Type | ||
| Feed Rate | X. Y Axis Rapid Feed Rate | 36m/min | |
| Z Axis Rapid Feed Rate | 36m/min | ||
| X. Y. Z Max.Cutting Feed Rate | 10m/min | ||
| Automatic tool changer | Arm Type (Tool to Tool) | 24T (3sec) | |
| Max. Tool Diameter*Length(adjacent) | Φ150X300mm(Φ78X300mm) | ||
| Max. Tool Weight | 8 kg | ||
| Motor | MITSUBISHI | FANUC | |
| Spindle Motor | 11/18.5kW | 11/18.5kW | |
| X. Y Axis Servo Motor | 3.0kW | 3.0kW | |
| Z Axis Servo Motor | 3.0kW BS | 3.0kW BS | |
| Machine Accuracy | Positioning Accuracy (JIS) | ± 0.005mm / 300mm | |
| Repeat Poitioning Accuracy (JIS) | ± 0.003mm | ||
| Others | Approximate Weight | 9000kg | |
| Floor Space Measurement | 4220*3430*3050mm | ||
Above specification are subject to change without prior notice.
