Wafer Grinding Wheels
Wafer Grinding Wheels

Introduction

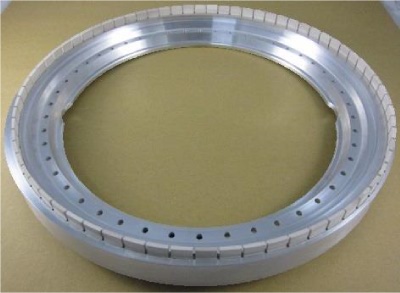

Wafer grinding wheels are used in the in-feed grinding process of semiconductor wafers such as TSV package (Cu/compound), SiC, sapphire, Si and reclaimed wafers etc. The in-feed grinding process consists of rough and fine grinding processes. Wafer grinding wheels are made of diamond abrasives and customized vitrified bond in a unique porous microstructure. The diamond size for rough and finish grinding processes are #325~#1000 and #2000~#8000 respectively. The features of these wafer grinding wheels are stable high removal rate, long lifetime and lower grinding resistance.

Specification

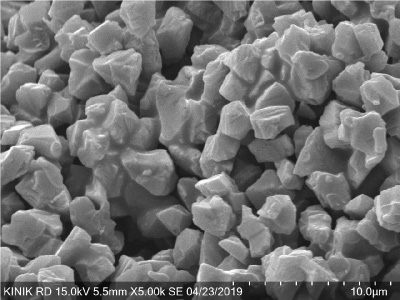

Porous microstructure

Specification

Here is a wafer fine grinding example of 8” & 12” Si wafers by #4000/#6000 wafer grinding wheels in-house and by customer. The result indicating lifetime of KINIK wafer grinding wheels with less tip wear is longer than that of competitor’s.

Wafer 8" Si 12" Si
Specification Spec K02BIB K02VAA K01VAC
Bond Resin Vitrified Vitrified
Diamond# 4000 6000 4000
Machine DISCO_850_8"_Z2 DISCO_850_8"_Z2 DISCO_8560_12"_Z2
Current (A) 9~11 7~9 5~7
Tip wear (um/s) 0.5~0.7 0.8~2 7~12
Roughness (Ra, um) 0.01 0.01 0.02
Exxxxx-N2 KINIK Competitor
Machine DISCO_840_8"_Z2
Current (A) 5~6 5~6
Tip wear (um /s) 0.3 0.9
Roughness (Ra, um) 0.01 0.01
